CLE-150 硬度计试验台


硬度计是测量物体硬度的仪器,表示材料抵抗硬物体压入其表面的能力。它是金属材料的重要性能指标之一。一般硬度越高,耐磨性越好。根据所测硬度单位:洛氏硬度计、维氏硬度计、显微硬度计、布氏硬度计、邵氏硬度计、巴氏硬度计、里氏硬度计、韦氏硬度计、肖氏硬度计、布洛维硬度。根据使用方式:便携式硬度计、台式硬度计。



进口硬度计美国Check-Line CLE-150型硬度计底座专为测量橡胶,塑料的硬度,通过动阀门和砝码来固定硬度计与样品,测量更为精准。

3 Models Available:

Check-Line CLE-150L: For Shore A and Asker C Durometers

Checkline CLE-150H: For Shore D Durometers

Check-Line CLE-150M: For Shore A, D and Asker C Durometers



Checkline CLE-150 motorized constant speed/load stand eliminates speed and load variables which occur when hand-testing samples with a durometer. Select speeds from 0.1~19.9 mm/sec in .1 mm increments.



Choose a model with the appropriate hardness scale for the material you are testing. In addition, the unique flexible coupling enables the presser foot of the durometer to make perfect contact even on samples with inclined surfaces.


  • Test speed and weight are constant

  • Unique flexible coupling system automatically aligns the presser foot to the surface of sample

  • Adjustable Test speed: 0.1~19.9 mm/sec in .1 mm increments


Model

Durometer

Weight

Material

CLE-150L

Shore A and Asker C

1000g

Normal and soft rubber

CLE-150H

Shore D

5000g

Hard rubber and plastics

CLE-150M

Shore A, D and Asker C

1000g/5000g

Hard rubber and plastics


Model

Durometer

Weight

Material

CLE-150L

Shore A and Asker C

1000g

Normal and soft rubber

CLE-150H

Shore D

5000g

Hard rubber and plastics

CLE-150M

Shore A, D and Asker C

1000g/5000g

Hard rubber and plastics


相关型号

OS-1

OS-2

OS-3

0S-4

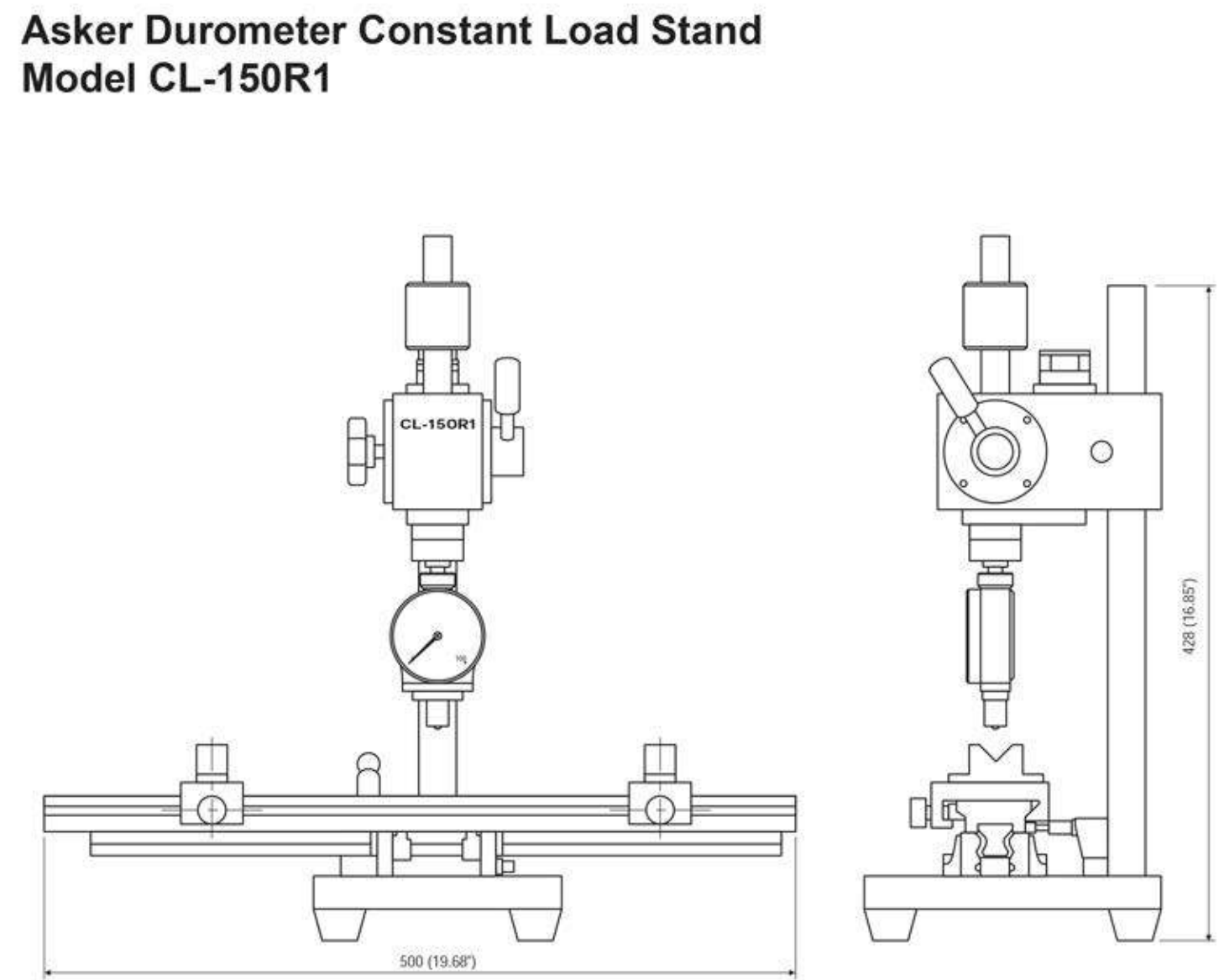

CLE-150 01.png
