Checkline DCF-900
量程:0.1–40.0 mils (1–999μm)
Measuring the thickness of paint, plating, coatings and galvanizing — on iron or steel
测量钢或铁上油漆,涂料,涂层和镀锌的厚度
Check-Line DCN-900
量程:0.1–40.0 mils (1–999 μm)
Measuring the thickness of paint, coatings, anodize — on aluminum, brass, zinc, stainless steel and other non-ferrous metals
测量铝,铜,锌,不锈钢以及其他有色金属上油漆,涂层和阳极电镀的厚度
1. Measures to 0.01 mil (0.1 μm), automatically rounding off to the nearest 0.1 mil (1 μm).
最小测量值,0.01 mil (0.1 μm)
2. Keypad-selectable English or metric units.
语言可选英语,单位可选公制单位
3. Continuous reading update detects soft coatings as probe tip “sinks” into them.
检测软质涂层时可持续数据更新
4. Calibration to NIST standards is available upon request.
带NIST检验证书
5. Remote probe permits easy access to hard-to-reach places.
远程探针使得测量难以到达的地方成为可能

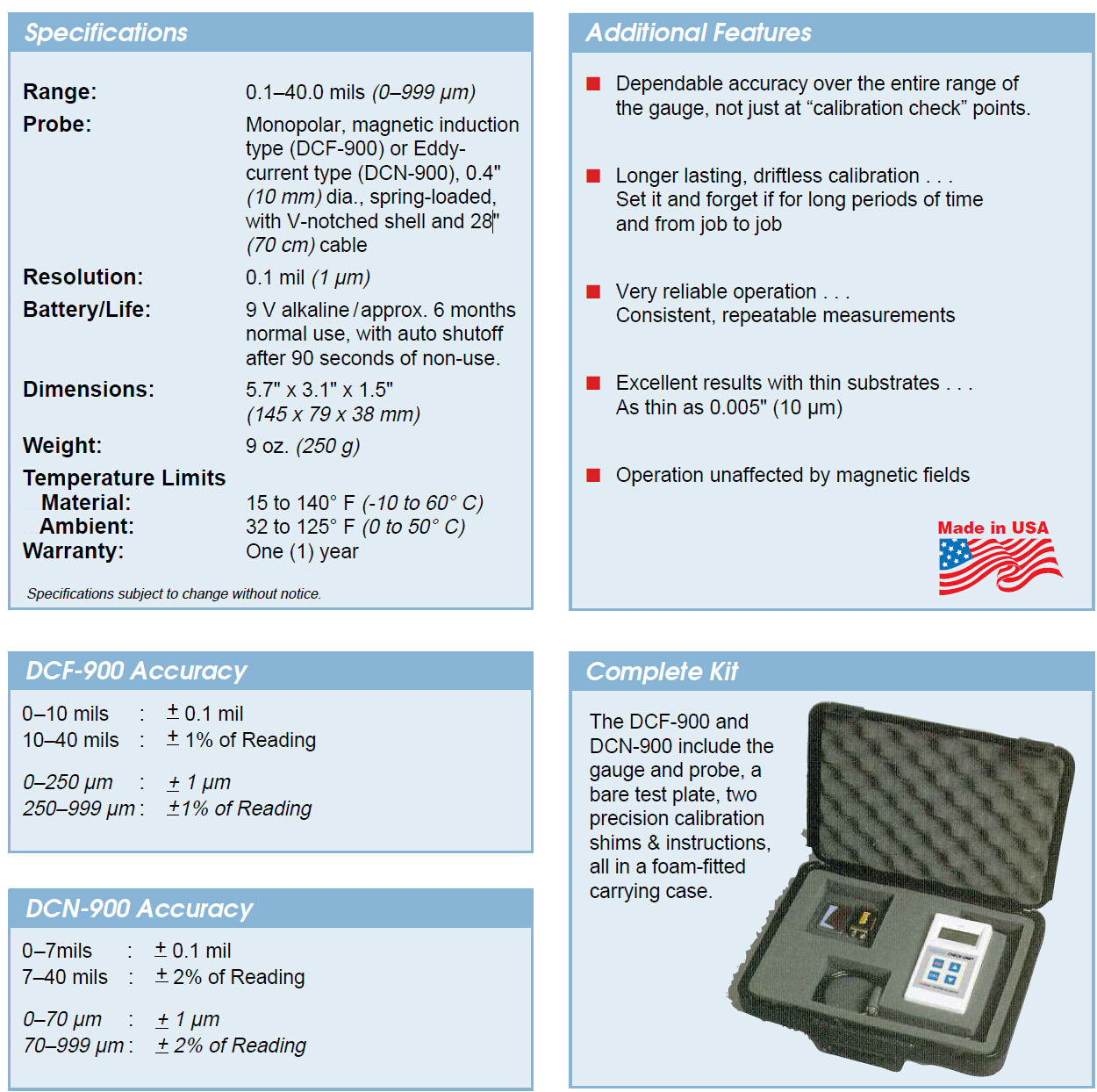

量程 | 0.1-40.0 mils (0-999 µm) |
分辨率 | 0.1 mil (1 µm) |
精度 | 0-10 mils: ±0.1 mil |
探头 | Monopolar, magnetic induction, 0.4" (10 mm) dia., spring-loaded, with V-notched shell and 28" (70 cm) cable |
电池 | 9 V alkaline/approx. 6 months normal use, with auto shutoff after 90 seconds of non-use. |
尺寸 | 5.7" x 3.1" x 1.5" (145 x 79 x 38 mm) |
重量 | 9 oz. (250 g) |
温度范围 | Material: 15 to 140° F (-10 to 60° C) |
质保 | One (1) year |
DCF-900精度:
0–10 mils | + 0.1 mil |
10–40 mils | + 1% of Reading |
0–250 μm | + 1 μm |
250–999 μm | +1% of Reading |
DCN-900精度:
0–7mils | + 0.1 mil |
7–40 mils | + 2% of Reading |
0–70 μm | + 1 μm |
70–999 μm | + 2% of Reading |
The DCF-900 and DCN-900 include the gauge and probe, a bare test plate, two precision calibration shims & instructions, all in a foam-fitted carrying case.
DCF-900/DCN-900机身,探头,测试版,校准证书,操作说明书,仪表箱。
