The new
The new Checkline DS2 digital force gauges feature a large, easy-to-read LCD display and simple push-button operation. An ergonomic metal housing protects the highly accurate loadcell and electronics in tough industrial environments.
When measuring, units of measure and a tension or compression icon are displayed. A battery icon indicates the NI-MH batteries are low. If an overload occurs the display will flash to warn you.
If desired, you can program high/low setpoints to enable Go/NoGo testing using the LCD indicators. Standard outputs (RS-232C, Digimatic, and ±1VDC analog) enable you to acquire data for permanent record.
All Check-Line DS2 gauges can run on the internal NI-MH batteries or the AC adapter/charger. An optional handle to facilitate the measurement of heavy loads is also available.
Real time and peak mode (selectable)
RS-232C, Digimatic and analog outputs
2 Year Warranty
lb, kg, and Newton units are push-button selectable
Ergonomic, heavy-duty metal construction
Overload alarm, low battery display indicator
Runs on internal NI-MH batteries or AC adapter
Overload capacity 200% F.S.
Supplied with NIST-Traceable Calibration certificate
Programmable High/Low setpoints with LCD indicators
User selectable sampling rate, 30 or 1000 per/second (Hertz)
Reversible Display
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty
Accuracy: | ± 0.2% Full scale ± 1 LSD |
Display: | 4 digit, 12 mm high |
Overload capacity: | 200% Full scale, |
Data Processing Speed | 1,000 data/second (30 data/second rate selectable) |
Display Update | 10 times per second |
Outputs | RS-232, Mitutoyo Digimatic and ±1 VDC analog output |
Temperature range: | 32° to 100° F (0 - 40° C) |
Low battery indicator: | Display flashes when battery is low |
Power supply: | Rechargeable NiMH battery pack or AC adapter (included) |
Setpoints | Programmable high/low setpoints with LCD indicators |

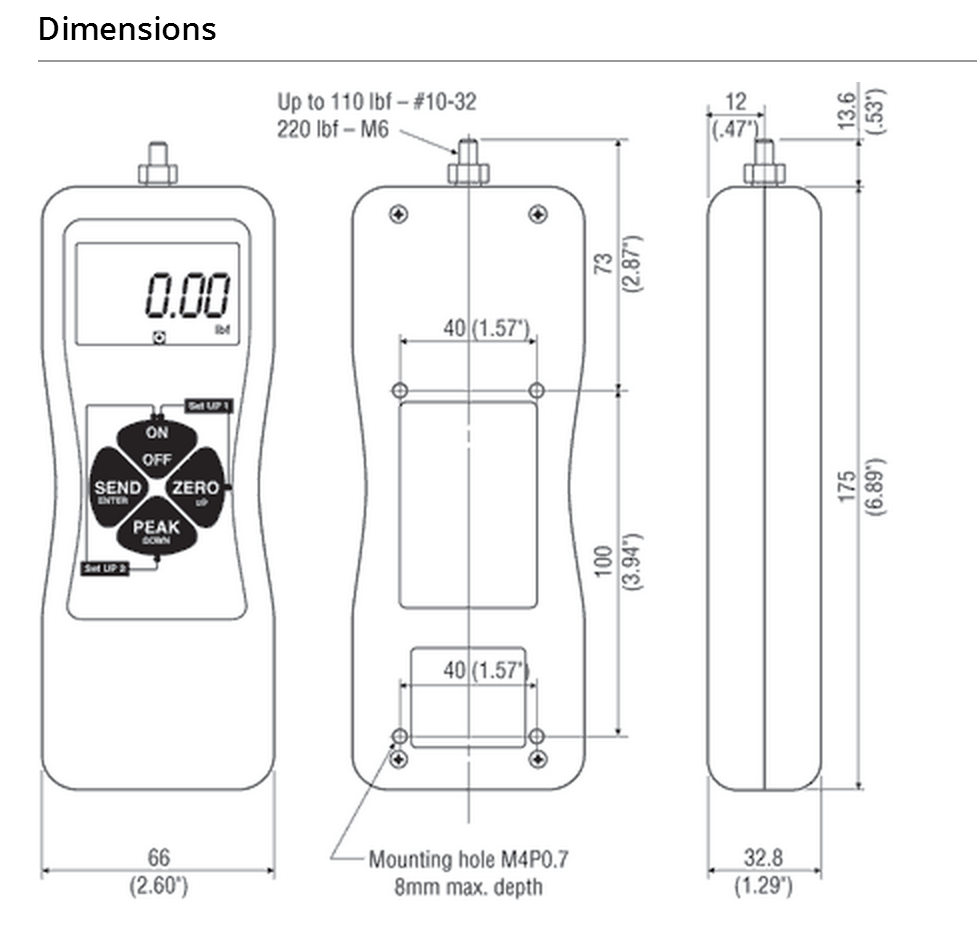

Housing dimension: | 215 x 65 x 51 mm (L x W x H) |
Weight, net (gross) | approx. 430 g (1300 g) |
Warranty | 2 Years |
订货清单
All DS2 gauges are sold in a complete kit with gauge, hard plastic carrying case, a set of six standard attachments, NIST Traceable Calibration Cert, Instruction Manual and AC adapter/charger.
配件
ISO-17025 Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate
DOH-1 Handle for digital Force Gauges
CB-203 Serial Output Cable
SW-1X Software for DTX2 Torqe Gauge
CB-101 Analog Output Cable
CB-301 Digimatic SPC Cable
A-1E Small hook for DS2 force gauge up to 20lbs
型号
DS2-0.4 DS2-0.4 Digital Force Gauge, 7.00 oz Capacity
DS2-1 DS2-1 Digital Force Gauge, 1 lb Capacity
DS2-4 DS2-4 Digital Force Gauge, 4.4 lb Capacity
DS2-11 DS2-11 Digital Force Gauge, 11 lb Capacity
DS2-44 DS2-44 Digital Force Gauge, 44 lb Capacity
DS2-110 DS2-110 Digital Force Gauge, 110 lb Capacity
DS2-220 DS2-220 Digital Force Gauge, 220 lb Capacity
230V 230V Power Supply, No Cost Option supplied inplace of standard 115V
