转速计，又名转速表、转速仪，是机械行业必备的仪器之一，用来测定电机的转速、线速度或频率。常用于电机、电扇、造纸、塑料、化纤、纺织、汽车、飞机、轮船等制造业。 大多常用的为手持离心式转速计。美国Checkline旗下的转速计一般为数字式，有接触式和非接触式两种测量。非接触式采用光电器件测量，无连接轴，对被测件无任何影响，提高测量精度。
例如Checkline DT-105A/DT-107A型是一款手持接触式转速计，自带周长为12英寸的主轮，使得表面速度测量更加安全简单。
Checkline DT-105A (LCD MODEL)
Checkline DT-107A (LED MODEL)
Check-line DT-105A-12 (LCD MODEL with 12" Circumference Wheel)
Check-line DT-107A-12 (LED MODEL with 12" Circumference Wheel)
Accurately measure rotational and surface speed, as well as length. Built-in selector switch permits the user to display readings in a wide variety of engineering units. The Check-Line DT-105/7A-12 includes a 12" circumference measuring wheel which is offered for safer and easier surface speed measurement by keeping the users hand farther from the moving surface and slowing down the rotational speed.
Built-in memory for last, maximum, minimum and 10 separate readings
Rugged cast aluminum housing
Includes Traceable calibration Certificate
LCD Version for use in sunlight and for longest battery life (DT-105A)
LED version for use in poorly lit or dark environments (DT-107A)
Display Range | 0.10 to 25,000 rpm with floating decimal |
Accuracy | 0.10 to 999.99 rpm: ±0.06 rpm |
Display | DT-105A: (LCD MODEL) 5 digit 0.47" (12mm) high |
Measurement Units | Per Second: Inches, Centimeters (optional, inquire) |
Memory System | 13 readings are stored in memory and retained for 5 minutes |
Over-Range Indicator | Flashing numerals |
Detection | |
Update Time | 1 second (typical) |
Batteries | 2 - 1.5 V AA |
Battery Life | Approx. 65 hrs. (DT-105A) |
Low Voltage Indicator | Flashing "LO BAT" display (DT-105A) |
Operating Temp | 32 to 113° F (0 to 45° C) |
Weight | 0.9 pounds (400 grams) |

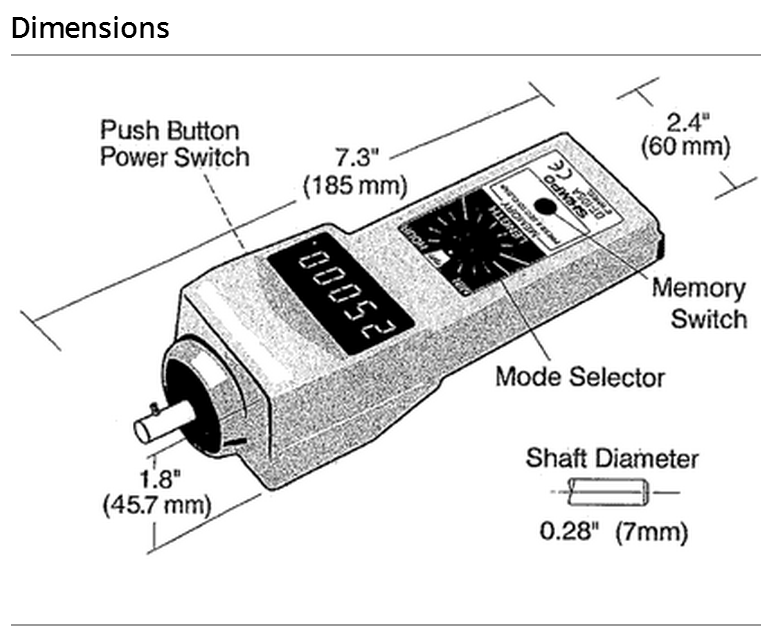

Dimensions | 7.3" L x 2.4" W x 1.8" H |
Warranty | 2 years |
Accessories Included | 2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions |
Country of Origin | Taiwan |
订货清单
All models are supplied as a complete kit including 6" circumference surface speed wheel, two cone tip adapters, funnel tip adapter, shaft extension, two AA batteries and and an operating instruction manual - all supplied in a foam-fitted carrying case.
配件
DTCA Cone Tip for Hand-held tachometers
DTFA Funnel Tip for Hand-held tachometers
DTSX Shaft Extension for Tachometers, 3 inch
DT6 6 Inch Circumference Tachometer wheel, 7mm shaft
DT12 12 Inch Circumference Tachometer wheel, 7mm shaft
LMA-3 12" Knurled Aluminum Measuring Wheel
BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit
订货型号
DT-105A Digital Contact Tachometer with LCD Display and 6" Circumference Wheel
DT-107A Digital Contact Tachometer with LED Display and 6" Circumference Wheel
DT-105A-12 Digital Contact Tachometer with LCD Display and 12" Circumference Wheel
DT-107A-12 Digital Contact Tachometer with LED Display and 12" Circumference Wheel
