ESH 机械式测力计


The Checkline ESH series mechanical force gauge is designed for high capacity measurements from 200 lbs up to 500 lbs (300 kg). The rugged metal housing and heavy duty springs will withstand the harsh rugged environment of a manufacturing plant, yet the highly accurate, matched springs will ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch enables you to observe transients or capture peaks. ESH force gauges are available in pounds, kilograms and Newtons. No batteries are needed and the unit is intrinsically safe in hazardous environments. Check-Line ESH


  • Real time and peak mode

  • Simple, rugged, virtually maintenance free

  • No batteries needed

  • Full set of accessories and carrying case included

  • Capacities up to 500 lbs (push and pull)

  • Intrinsically safe in hazardous environments

  • Heavy duty metal construction

  • Tare Ring

  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

  • 2 Year Warranty


Accuracy

± 0.5% Full Scale

Stroke

10 mm

Weight

3.1 Kg

Warranty

2 Years


订货清单

Sold in kit form complete with force gauge, hard plastic carrying case, handles, measuring attachments (hook and flat head), and extension shaft. Four installation bolts are also included for mounting the gauge to a test stand or other permanent location.



配件

ISO-17025   Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate



订货型号

Model

Capacity (resolution)

ESH-200

200 lb (2 lb)

ESH-300

300 lb (2.5 lb)

ESH-400

400 lb (4 lb)

ESH-500

500 lb (5 lb)

ESH-100KG

100 kg (1 kg)

ESH-200KG

200 kg (2 kg)

ESH-300KG

300 kg (2.5 kg)

ESH-1000N

1000 N (10 N)

ESH-2000N

2000 N (20 N)

ESH-3000N

3000 N (25 N)


相关型号

Series-2

Series-3

Series-4

Series-5

Series-7

FGV-XY

ZT-Series

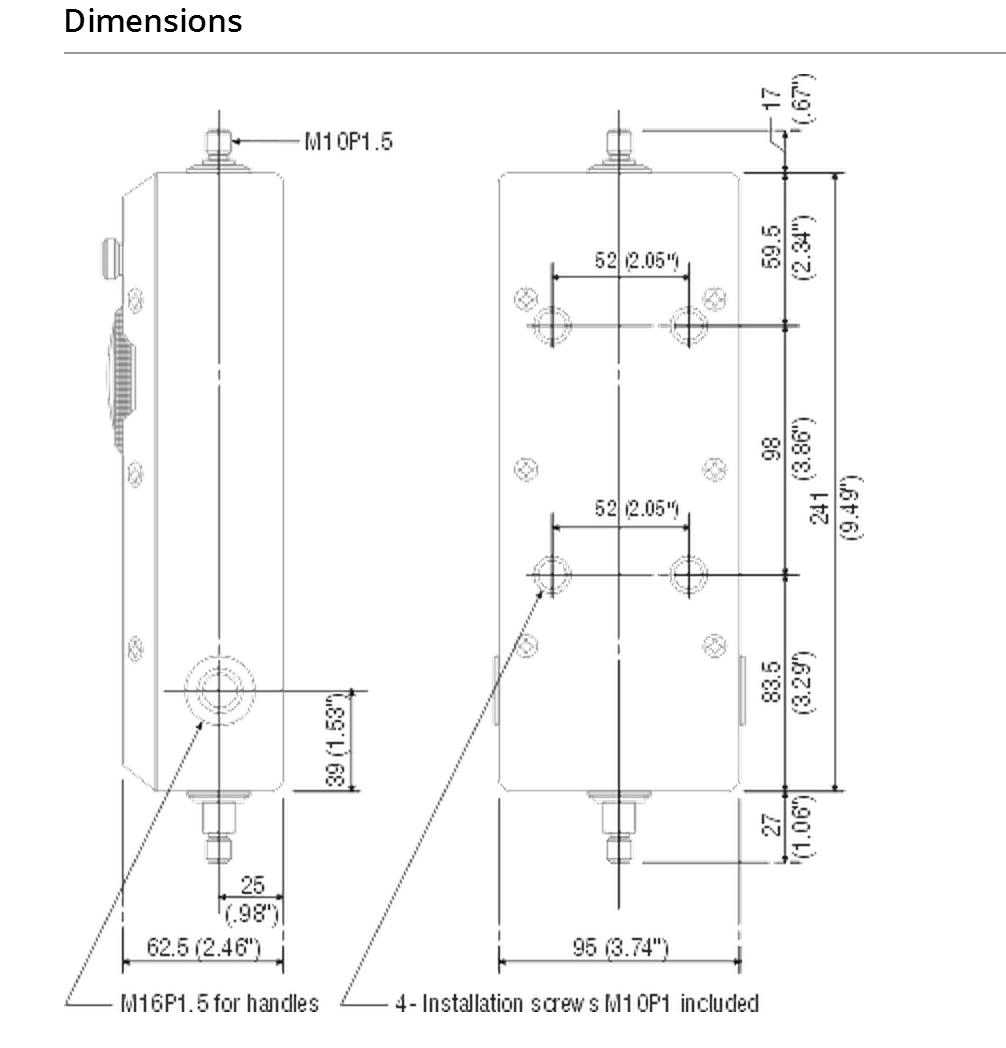

ESH 01.png
