FB 机械式测力计


Accuracy of ± 0.3%

Checkline FB Rugged construction and excellent accuracy make these force gauges ideal for tension and compression quality control measurements. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.


  • Ideal for push / pull measuremnts in all envirements

  • Real Time force display with peak capture

  • Free manufacturer´s calibration report

  • Zero Tare Ring to zero the gauge in each position

  • Full set of accessories and carrying case included

  • Hand-held use or can be mounting a on test stand

  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

  • 2 Year Warranty

  • Includes NIST Traceable Calibration Certificate


Accuracy

± 0.3% of Full Scale

Shaft Thread   Size

#10/32 for all model except FB-150 which   is M6.
  for all other models M6 is available as a no cost option.


订货清单

The complete kit includes the gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft.



配件

OH-1    Double Sided Handle For Digital Force Gauges

ISO-17025   Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate



订货型号

Model

Capacity (resolution)

FB-32OZ

32 ozf (0.25 ozf)

FB-80OZ

80 ozf (1 ozf)

FB-2

2 lb (0.02 lb)

FB-5

5 lb (0.05 lb)

FB-10

10 lb (0.1 lb)

FB-20

20 lb (0.2 lb)

FB-30

30 lb (0.25 lb)

FB-50

50 lb (0.5 lb)

FB-100

100 lb (1 lb)

FB-150*

150 lb (1 lb)

FB-1KG

1 kg (10 g)

FB-2KG

2 kg (20 g)

FB-3KG

3 kg (25 g)

FB-5KG

5 kg (50 g)

FB-10KG

10 kg (100 g)

FB-20KG

20 kg (200 g)

FB-30KG

30 kg (250 g)

FB-50KG

50 kg (500 g)

FB-10N

10 N (0.1 N)

FB-20N

20 N (0.2 N)

FB-30N

30 N (0.25 N)

FB-50N

50 N (0.5 N)

FB-100N

100 N (1 N)

FB-200N

200 N (2 N)

FB-300N

300 N (2.5 N)

FB-500N

500 N (5 N)


相关型号

MF

PS

ESH

PSH

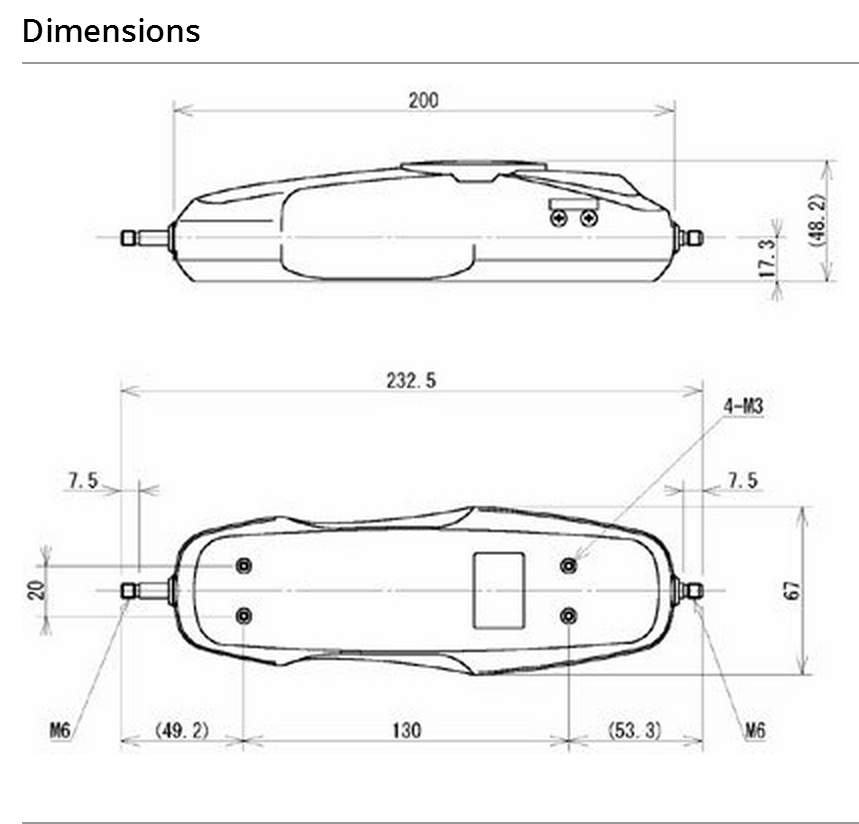

FB 01.png
