OS-2 硬度计支架


硬度计是测量物体硬度的仪器,表示材料抵抗硬物体压入其表面的能力。它是金属材料的重要性能指标之一。一般硬度越高,耐磨性越好。根据所测硬度单位:洛氏硬度计、维氏硬度计、显微硬度计、布氏硬度计、邵氏硬度计、巴氏硬度计、里氏硬度计、韦氏硬度计、肖氏硬度计、布洛维硬度。根据使用方式:便携式硬度计、台式硬度计。



进口硬度计,美国Check-Line OS-2硬度计底座,和不同刻度的硬度计配套使用,减少人为操作失误,提高测量精度,是工厂现场和实验室的不二之选。

ELECTROMATIC Equip't introduces the Checkline OS-2 compact operating stand for durometers in the A, B, E and O scales. The stand, used in conjunction with our Durometers, eliminates operator error sometimes associated with shop floor durometer testing. The stand features a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. It can be used with either the provided specimen holder or the optional O.R.F.-1 O-Ring Fixturing Set (sold separately).

The Check-Line OS-2H features an a dampener that lowers the durometer at the same rate for each test, resulting in superior repeatability for all durometer tests


  • Eliminates operator error in the A, B, E and O scales

  • Stainless steel and anodized aluminum construction

  • Compact size - 13" high x 6" wide

  • Total Weight approximately 9 lbs.

  • Made in the U.S.A.

  • Optional Dampener further increases repeatability


Sample   Clearance

Height: 2   5/8" To Specimen Holder
Depth: 3 1/4" Durometer Center To Shaft


配件

ORF-1   ORF-1 O-Ring Fixture Set

DTS-DC  Operating Stand Dust Cover

OS-E-ADP    Adapter for mounting AD-100 or DD-100 Durometers



订货型号

OS-2    OS-2 Durometer Test Stand

OS-2H   OS-2H Durometer Test Stand with dampener


相关型号

RX系列

AD-100系列

DD-100系列

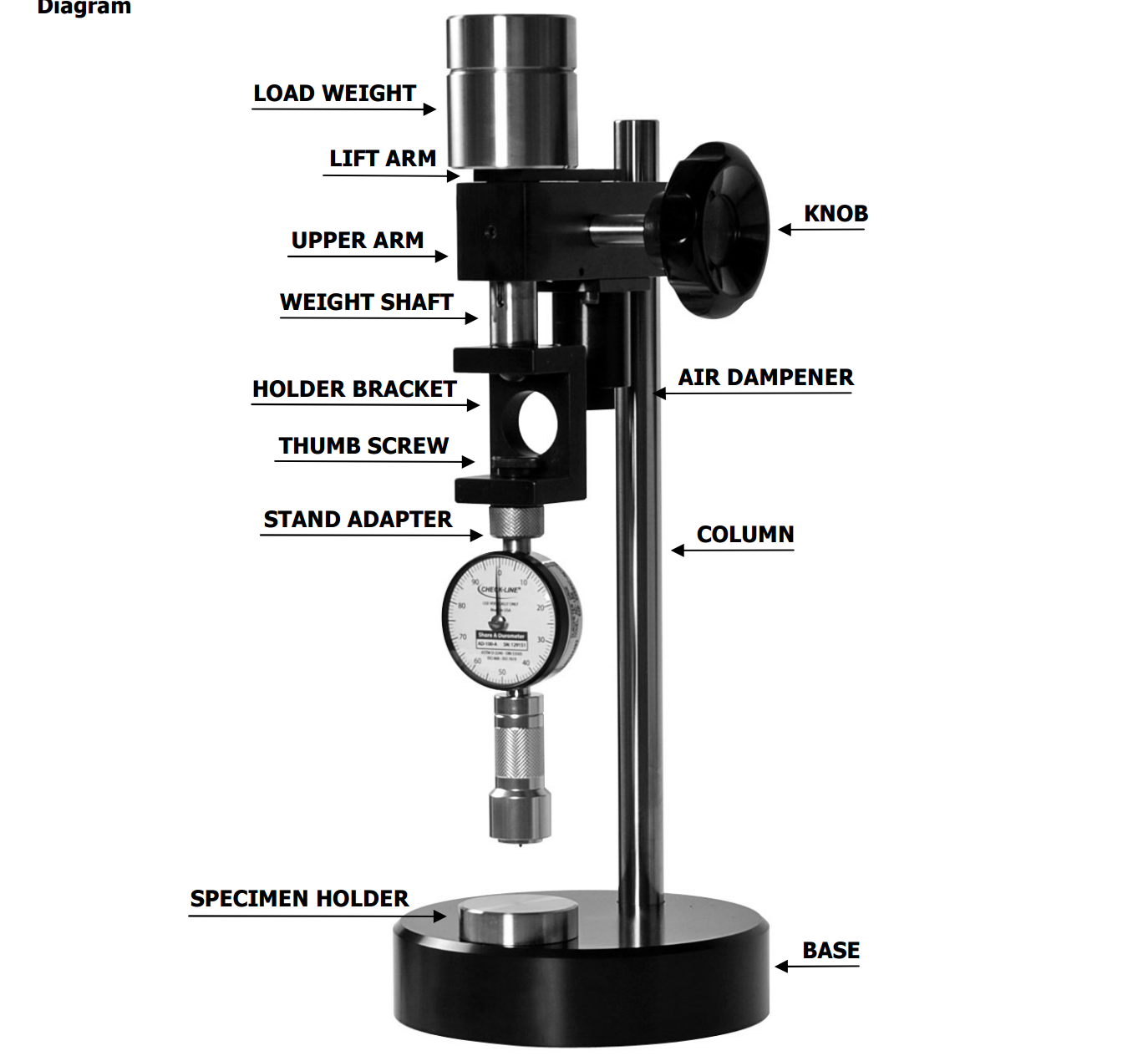

OS-2 01.png
