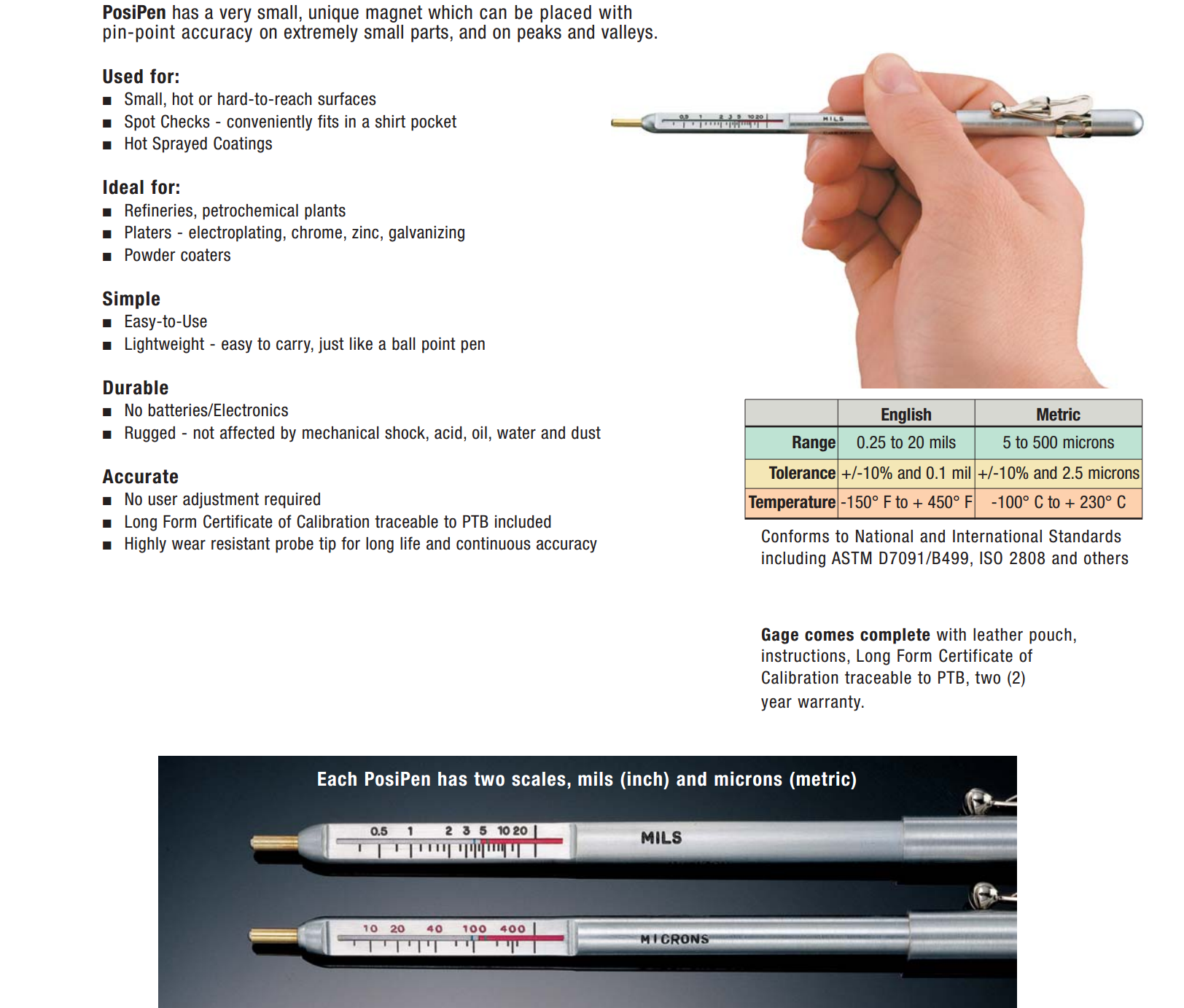

The Checkline PosiPen is a magnetic pull-off coating thickness gauge. It is designed to measure non-magnetic coatings such as paint, enamel, plating, & hot-dip galvanizing on steel. It is ideal for measuring small parts, hard-to-reach surfaces and high temperature materials up to 230° C (450° F). The PosiPen is the only gauge we offer that can measuring coating thickness on wire. Note the wire must be steel.
Check-Line PosiPen can be placed with pin-point accuracy on any location of the part to be measured which other Gauges are not able to reach.
PosiPen measures:
on hot surfaces
on small surfaces
in different positions
PosiPen has a very small unique magnet and therefore can measure on extremely small parts, on peaks and valleys.
Includes NIST Traceable Calibration Certificate
Conforms to National and International Standards including ASTM D7091/B499, ISO 2808 and others
Two (2) Year Warranty
Made in the USA
Range | 0.25 to 20 mils (5 to 500 microns) |
Tolerance | ±10% and 0.1 mil (2.5 microns) |
Temperature Limits | -150 to 450 °F (-100 to 230 °C) |
订货清单
The PosiPen is supplied as a complete kit including the gauge, leather pouch, instructions and Certificate of Calibration traceable to NIST.
订货型号
PP-1 PP-1 PosiPen Magnetic Pull-Off Thickness Gauge
