Checkline PT-200B - 0.5 - 40 mils (13 - 1000 microns)
Check-Line PT-200C - 2 - 150 mils (50 - 3800 microns)
Check-Line PT-200D - 2 - 300 mils (50 - 7600 microns)

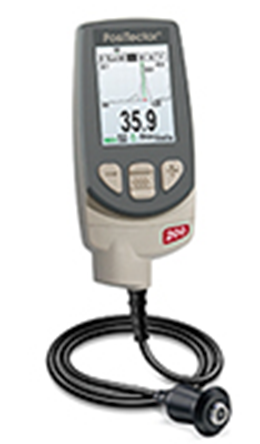

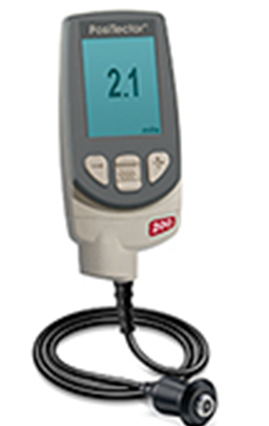

The Checkline PosiTector PT-200 measures coating thickness on drywall, concrete, wood, plastic and more... using ultrasound technology. Advanced model can measure up to 3 individual layer thicknesses in a multi-layer system and features a graphic readout for detailed analysis of the coating system.
On-Screen Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
Includes NIST Traceable Calibration Certificate
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X
Thick impact-resistant Lexan display
Bi-color indicator light
2 Year Warranty
Shock-absorbing, protective rubber holster
Quality high-flex cable and strain relief
Comfortable ergonomic finger grip reduces operator fatigue
Plastic-tipped probe will not scratch surface
Made in the USA
PosiTector 200 | B/Std | B/Adv | C/Std | C/Adv | D/Std | D/Adv |
Order Code | PT-200B-S | PT-200B-A | PT-200C-S | PT-200C-A | PT-200D-S | PT-200D-A |
Included Body | Standard | Advanced | Standard | Advanced | Standard | Advanced |
Included Probe | PROBE-200B | PROBE-200C | PROBE-200D | |||
Typical Applications | polymer coating on wood, plastic, etc. | Coatings on concrete, | Thick, soft coatings like polyurea, asphaltic neoprene,very thick polymers | |||
Measures Total Thickness | • | • | • | • | • | • |
Measures Individual Layers** | • | • | • | |||
Measurement Range* | 13 to 1000 μm | 50 to 3800 μm | 50 to 7600 μm | |||
Accuracy | + (2 μm + 3% of reading) | + (20 μm + 3% of reading) | ||||
Minimum Individual Layer Thickness** | 13 μm | 50 μm | 500 μm | |||
Certified Thickness Standard | STDA3 | STDP6 | STDP1 |
订货清单
ALL GAGES COME COMPLETE with body and probe, couplant (ultrasonic gel), precision plastic shim(s), protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiSoft.net account, two (2) year warranty.
配件
PROBE-200B Probe for 200 Series - 40 mil / 1000 micron - PRB200B-C
PROBE-200C Probe for 200 Series - 150 mil / 3800 micron - PRB200C-C
PROBE-200D Probe for 200 Series - 300 mil / 7600 micron PRB200D-C
PRINTERBT Bluetooth Printer
IR-PAPER 3 Additional rolls of paper
CF12 Coupling Fluid - 12oz
GEL-P Case of 12 bottle of Couplant, 4oz each
USBAC AC Power Adapter, 100-230V for Positector Display
订货型号
PT-200B-S PosiTector 200B Standard 0.5 - 40 mils (200B1-E)
PT-200B-A PosiTector 200B Advanced 0.5 - 40 mils (200B3-E)
PT-200C-S PosiTector 200C Standard 2.0 - 150 mils (200C1-E)
PT-200C-A PosiTector 200C Advanced 2.0 - 150 mils (200C3-E)
PT-200D-S PosiTector 200D Standard 2 - 300 mils (200D1-E)
PT-200D-A PosiTector 200D Advanced 2 - 300 mils (200D1-E)
