Measuring Range in Steel
Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters)
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters)
(range depends upon probe selected)
5 year warrantyThe new CHECK-LINE TI-25DL-MMX Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
Checkline TI-25DL-MMX can be used in a Single Thickness Reading mode or in a Scan mode, where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
TI-25DL-MMX incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.
The TI-25DL-MMX probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.
Ability to measure through paint and eliminate coatings
Resolution of 0.001 inch (0.01 mm)
Large, backlit LCD display retains last reading
Simple operator controls virtually eliminate training
RS-232C Serial output for downloading stored data to a printer or computer
Memory for 1000 data points in up to 10 batches
Special-purpose probes are offered for a variety of applications
Switch-selected units for inches or mm
For underwater surveying, probe cable lengths up to 50 feet are optionally
CE Certified
Includes NIST-Traceable Calibration Certificate
IP 65 Rated

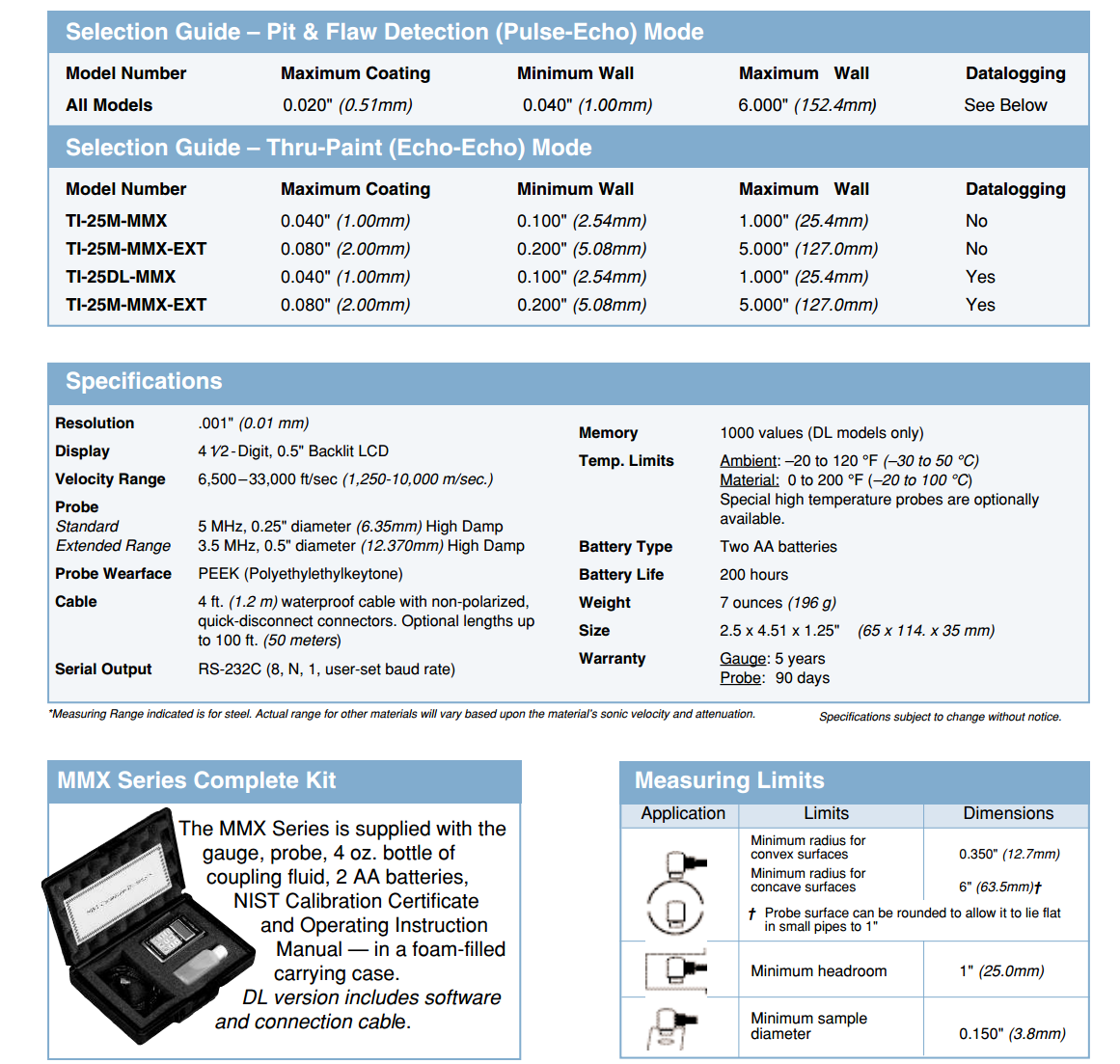

Range | Pulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 6.000 (up to 19.999 inches if uncoated using T-102-2000 probe) |
Resolution | .001" (0.01 mm) |
Display | 4½ - Digit, 0.5" Backlit LCD |
Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec |
Probe | 5 MHz, 0.25" Diameter (6.35 mm) |
Probe Wearface | PEEK (Polyethlethylketone) |
Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C) |
Serial Output | RS-232C (8, N, 1, user-set baud rate) |
Battery Type | Two AA batteries |
Battery Life | 200 hours |
Weight | 7 ounces (196 g) |
Size | 2.5 x 4.5 x 1.25" |
Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
Warranty | Gauge: 5 Years |
订货清单
The TI-25DL-MMX is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable, Serial to USB adapter and Operating Instruction Manual - all in a foam-fitted carrying case.
配件
TICC-M Protective Holder for Most TI Series Gauges
CF12 Coupling Fluid - 12oz
V-Block V-Block Transducer Holder (For 3/16" & 1/4" Transducers only)
T-102-2700 1/4" diameter, 5.00 MHz, dual element, Hi-Damped transducer
T-104-9700 1/2" diameter, 3.5 MHz, dual element, Hi-Damped transducer
T-212-2001 1/4", 5 MHz Hi-Temp (900 F / 500 C) Transducer
BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit
订货型号
TI-25DL-MMX Data Logging Through-Paint Ultrasonic Thickness Gauge Kit with T-102-2700 Probe
TI-25DL-MMX-EXT Data Logging Through-Paint Ultrasonic Thickness Gauge Kit with T-104-9700 Probe
