Measuring Range in Steel
0.040 - 6.000 inches
1.00 - 150.0 mm
The CHECK-LINE TI-25P Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion from only one side!
The Checkline TI-25P holds a single ultrasonic velocity, making it the perfect choice applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn it on and go to work.
Standard configuration: In its standard configuration, the TI-25P is factory set to measure steel.
Optional configuration: When required the TI-25P can be programmed to measure any other single material instead of steel. In order to program the gauge for use on any other material then factory steel, a sample of the material to be measured is required or the exact sound velocity of the material must be known.
Resolution of 0.001 inch (0.01 mm)
The TI-25P probe is waterproof and can be submerged in water
Special-purpose probes are offered for a variety of applications
Switch-selected units for inches or mm
The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions
For underwater surveying, probe cable lengths up to 15 meter are optionally
Large, backlit LCD display retains last reading
Comes complete with cable and software to transfer the velocity to the gauge.
IP 65 Rated
Range in Steel | 0.040-6.000" (1.00-150.0 mm) with supplied probe. Other probes available. |
Resolution | 0.01 millimeter (0.001 inch) |
Display | 4½ - Digit, 0.5" Backlit LCD |
Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec |
Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) |
Probe Wearface | PEEK (Polyethylethylkytone) |
Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
Temp. Limits | Ambient: -30 to 50° C (-20 to 120° F) |
Battery Type | Two AA batteries |
Battery Life | 200 hours |
Weight | 280 g (710 ounces) |
Dimensions | 64 x 114 x 32mm (2.5 x 4.5 x 1.25") |
Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
Software | Comes complete with cable and software to transfer the velocity to the gauge. |
Warranty | Gauge: 5 Years |
订货型号

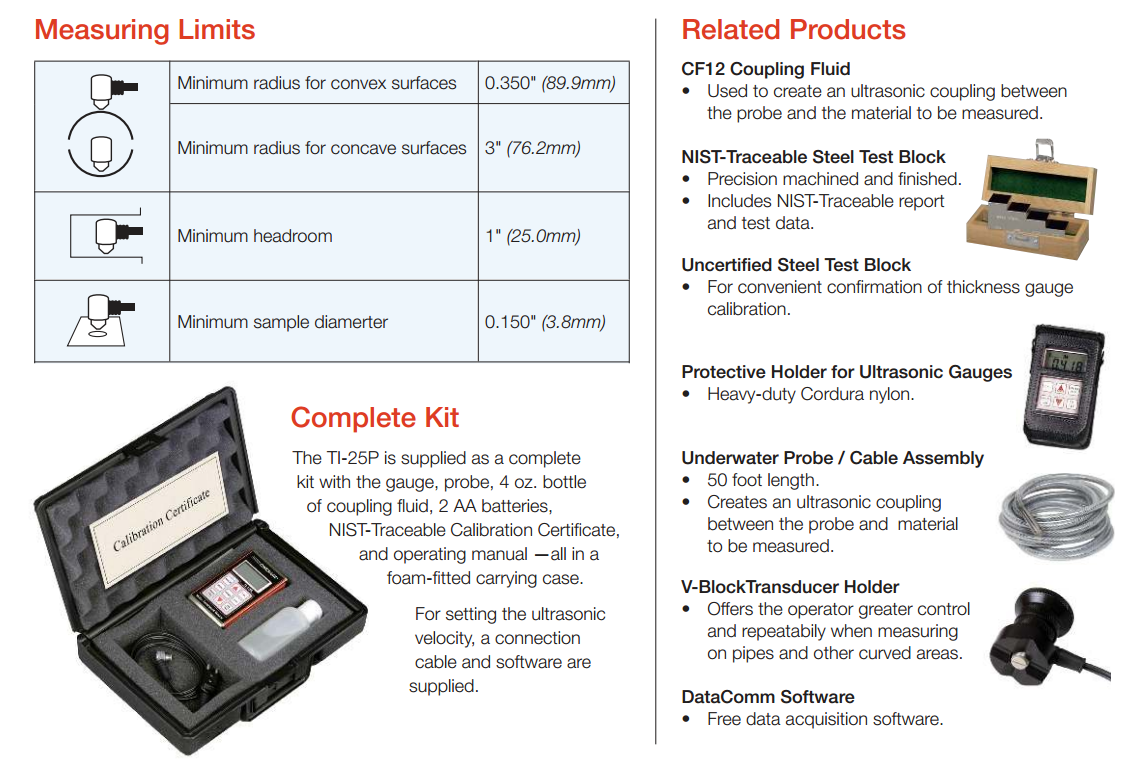

The TI-25P is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
For setting the ultrasonic velocity, a connection cable and software are supplied
配件
TICC-M Protective Holder for Most TI Series Gauges
CF12 Coupling Fluid - 12oz
V-Block V-Block Transducer Holder (For 3/16" & 1/4" Transducers only)
T-102-2000 1/4" diameter, 5.00 MHz, dual element transducer
BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit
订货型号
TI-25P Programmable Ultrasonic Wall Thickness Gauge kit with T-102-2000 probe
