Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm
The new CHECK-LINE TI-44N Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas. This product is similar to our Check-Line Checkline TI-45N, however the probe is hard-wired to the gauge and is NOT removable as in the Check-Line TI-45N.
Resolution of 0.001" (0.01mm) with Switch-selectable units of inches or mm
Extremely small & lightweight operating from a single AA battery.
Fixed-mounted probe is connected to gauge with one meter flexible cable (39")
Built-in calibration test plate on front of gauge housing
Quick display update with last reading retained on the display
Display symbols alert user to poor coupling and low battery conditions
NIST-Traceable Calibration Certificate & Test Report is optionally available

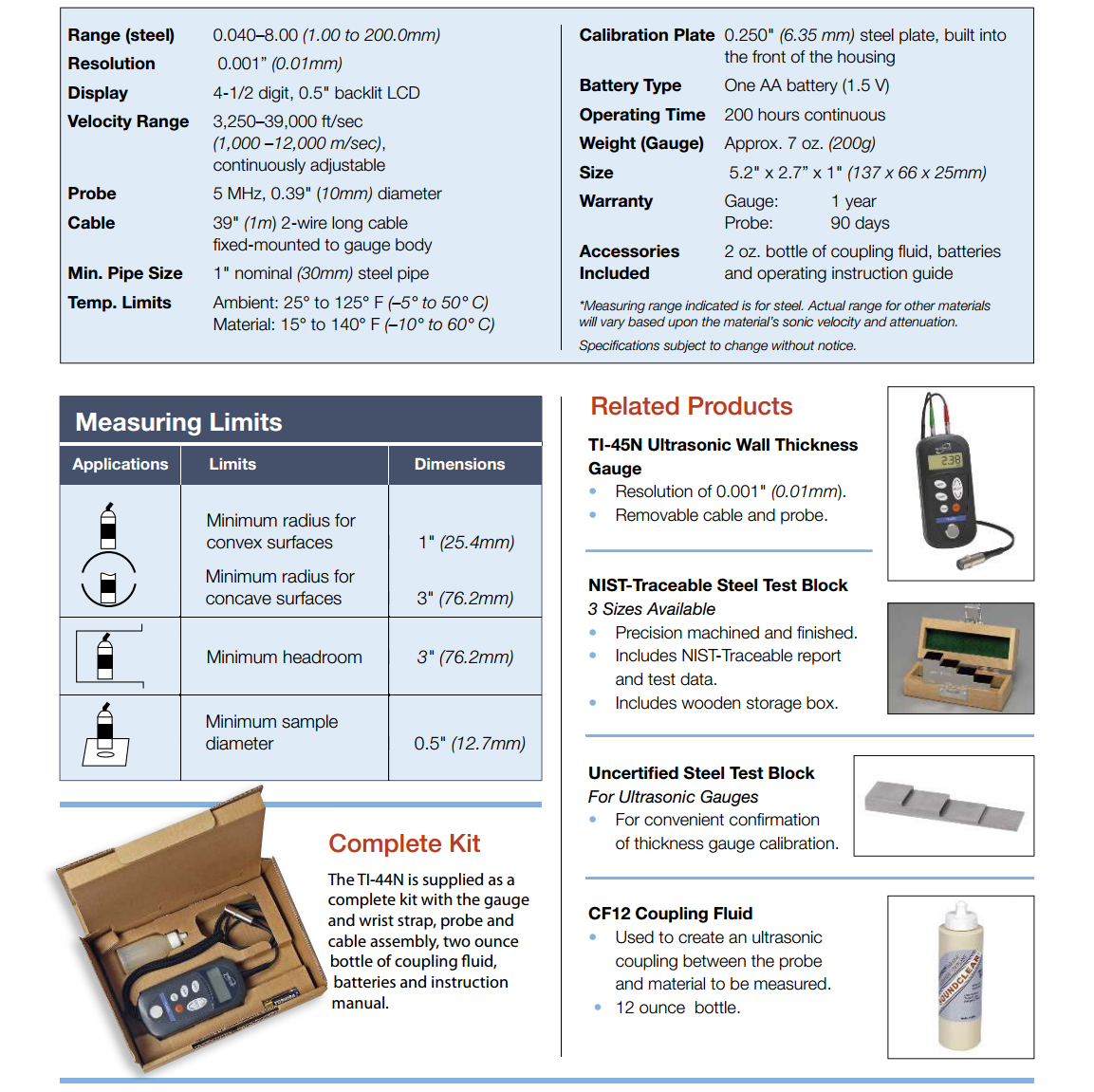

Range in Steel | 0.040 - 8.000" (1.0 - 200.0 mm) |
Resolution | .001" (0.01 mm) |
Display | 4½ - digit LCD display, 0.39" (10mm) high with push button illumination |
Velocity Range | 3,250 - 39,000 ft/sec |
Probe | 5 MHz, .39" (10 mm) diameter |
Cable | 39" (1m) 2-wire, long cable with fixed-mounted to gauge body |
Minimum Pipe Size | 1" nominal (30mm) steel pipe |
Temp. Limits | Ambient: 25 to 125° F (-5 to 50° C) |
Calibration Plate | 0.250" (6.35mm) steel plate, built into the front of the housing |
Battery Type | 1x AA battery |
Battery Life | 200 hours |
Weight | Gauge: 7 ounces (200 g) |
Size | 5.2" x 2.7" x 1.1" |
Warranty | Gauge: 1 years |
订货清单
The Checkline TI-44N is supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, battery and instruction manual -- all supplied in a cardboard pack as shown.
配件
TICC-M Protective Holder for Most TI Series Gauges
CF12 Coupling Fluid - 12oz
V-Block V-Block Transducer Holder (For 3/16" & 1/4" Transducers only)
T-102-2000 1/4" diameter, 5.00 MHz, dual element transducer
BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit
订货型号
TI-44N Ultrasonic Wall Thickness Gauge kit with integrated 5mhz, 10mm probe
