Measuring Range: 0.3 to 26.0% water content
Available with optional USB output

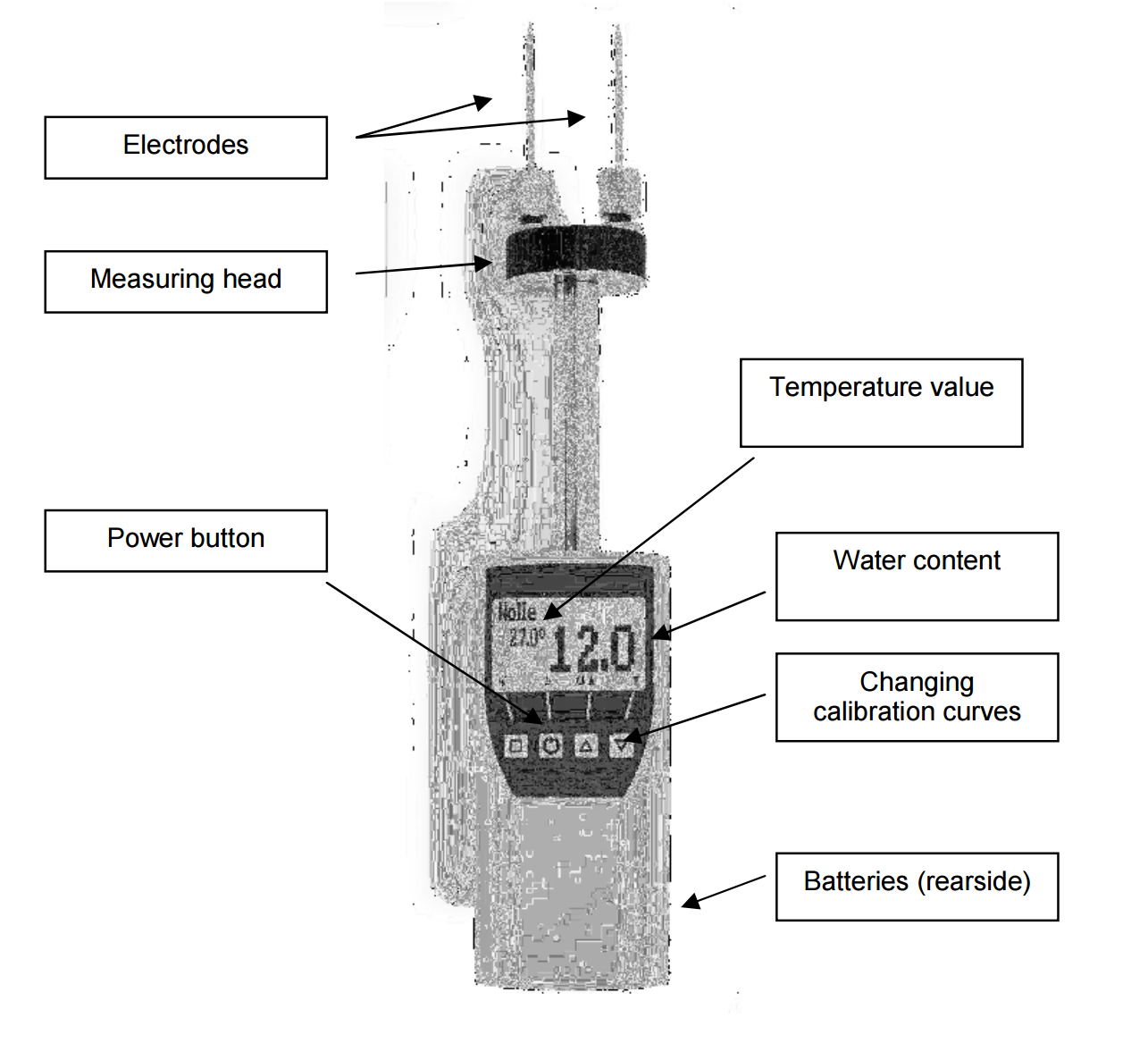

The new digital textile moisture meter TMT-425 is the next generation of textile moisture meters. It determines the moisture content of textiles, natural materials, synthetics and yarn during the production process within seconds. The water content of textiles and yarns influences the elasticity and tensile strength directly.
This textile moisture tester has all textile curves stored inside and does not require any look up tables. Just select the appropriate moisture curve and start measuring. By this, maximum accuracy is guaranteed.
The TMT-425 is calibrated to the following textile types:
- Acetate
- Acrylic
- Hemp yarn
- Jute Yarn
- Cotton
- Nylon
- Polyester
- Viscose
- Flax
- Wool
Wide measuring range of 0.3% to 26% moisture content
Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns.
Automatically calculates average measurement values
Automatic temperature compensation
Memory Enables quality control and documentation on location
Menu languages: German, English, French, Italian, Spanish and Russian
No conversion tables needed!
Measuring Range | 0.3% to 26% moisture content |
Resolution | 0.1% |
Measuring Technique | Electrical Resistance |
Menu Languages | English, German, French, Italian, Spanish and Russian |
Housing | Meter: Plastic with IP40 classification |
Data Recording | 10,000 measurements with date, batch and temperature |
Display | Grafic LCD display with backlight (128 x 64 pixels) |
Temperature | Automatically in °C or °F using a built-in temperature probe |
Operating Temperature | 0 °C to 40 °C |
Storage Temperature | -20 °C to 60 °C |
Power Supply | 4 x 1.5 Volt AA Alkaline Batteries |
Data transfer (only for TMT-425-USB) | Via USB-port (supplied with USB cable and software) |
Dimensions | 740 x 65 x 40 mm |
Weight | 450 gr. including batteries |
Warranty | 2 years |
订货型号
TMT-425 | Digital Textile Moisture Tester |
TMT-425-USB | Digital Textile Moisture Tester with USB output |
配件
200-TEM | Connecting Cable, TMT-425 to Electrode |
202 | Cup Electrode, 140 x 36mm for cotton (50202M) |
204 | Electrode Holder |
205 | Needle Electrode - 25mm (50205M) |
206 | Needle Electrode - 45mm (50206M) |
207 | Needle Electrode - 100mm (50207M) |
208 | Needle Electrode - 17 mm (50208M) |
209 | Stab electrode - 325mm (50209M) |
209 BSM | Cotton electrode - 75mm + 175mm (50209BSM) |
210 | electrode - 110mm (50210M) |
211 | Roller electrode for running webs of textiles (50211M) |
212 | Continuous run electrode (50212M) |
213 | Surface electrode for fabrics (50213M) |
CP-425-KIT | Calibration Set with Reference Standard 22.0% and 41.0% |
