Checkline TSN is a preset torque wrench that's ideal for maintenance and production applications where over-torque conditions are not tolerated. The use of cam-over wrenches takes the operator influence out of the torque equation and offers more accurate and repeatable results than a standard ‘click’ type wrench. Check-Line TSN.
A preset production torque wrench.
Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
Fully-supported non-strip ratchet head.
Features the new mechanical torque adjustment locking device (M-TALD). An auto locking single key operation prevents tampering.
The wrench 'slips' free when preset torque is reached, thus eliminating overtorquing.
Non-length dependent.
Strong corrosion-resistant stainless steel head, protective coated handle and non-slip rubber grip.
ESD compliant (IEC 61340-5-1:1998).
订货型号

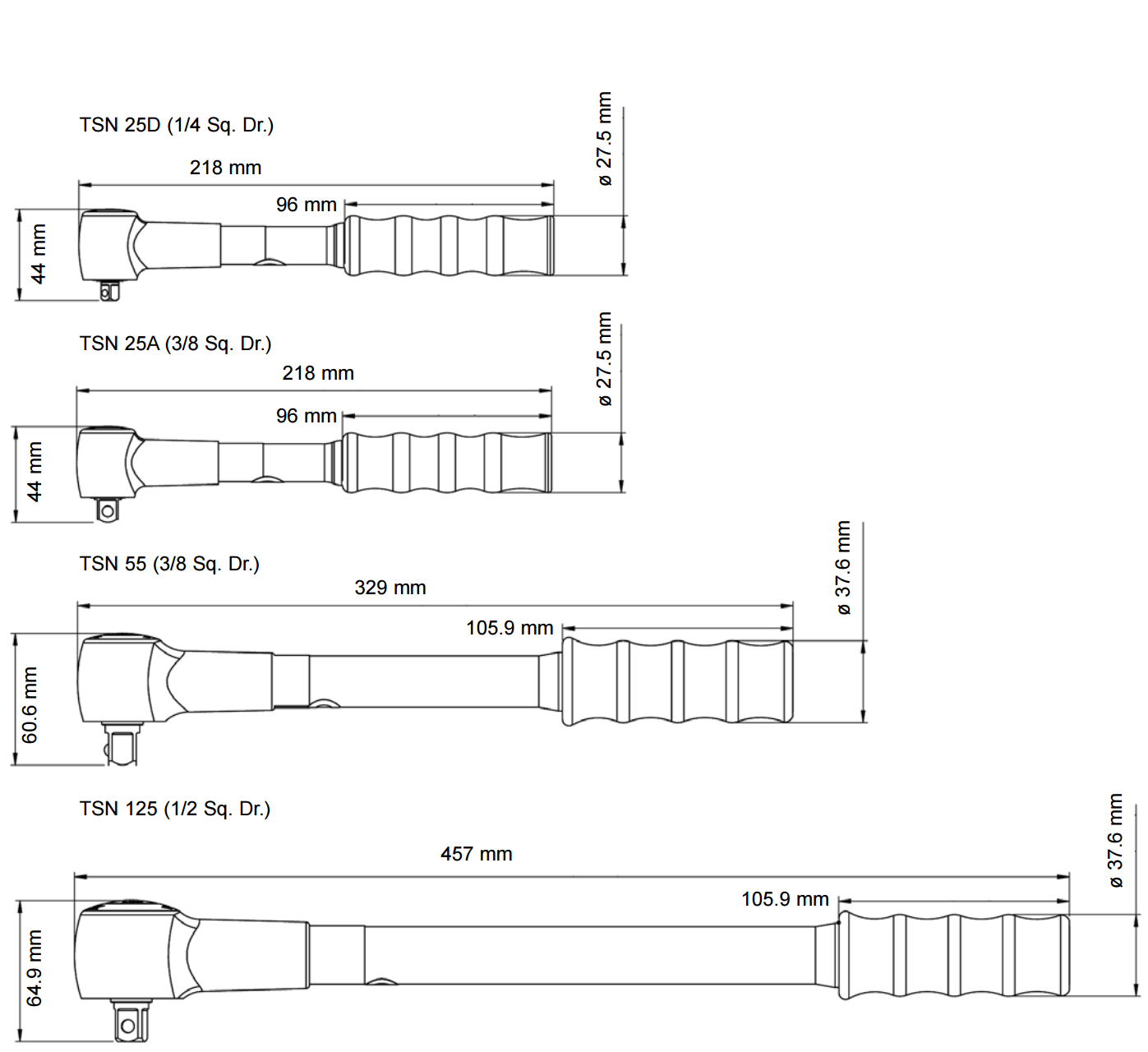

Model | Range | Sq. Drive | Length (in/mm) |
TSN25D | 3 - 25 N-m | 1/4" | 8 1/2 in / 216 mm |
TSN25A | 3 - 25 N-m | 3/8" | 8 1/2 in / 216 mm |
TSN55 | 15 - 55 N-m | 3/8" | 12 3/4 in / 324 mm |
TSN125 | 30 - 90 N-m | 1/2" | 18 1/8 in / 460 mm |
