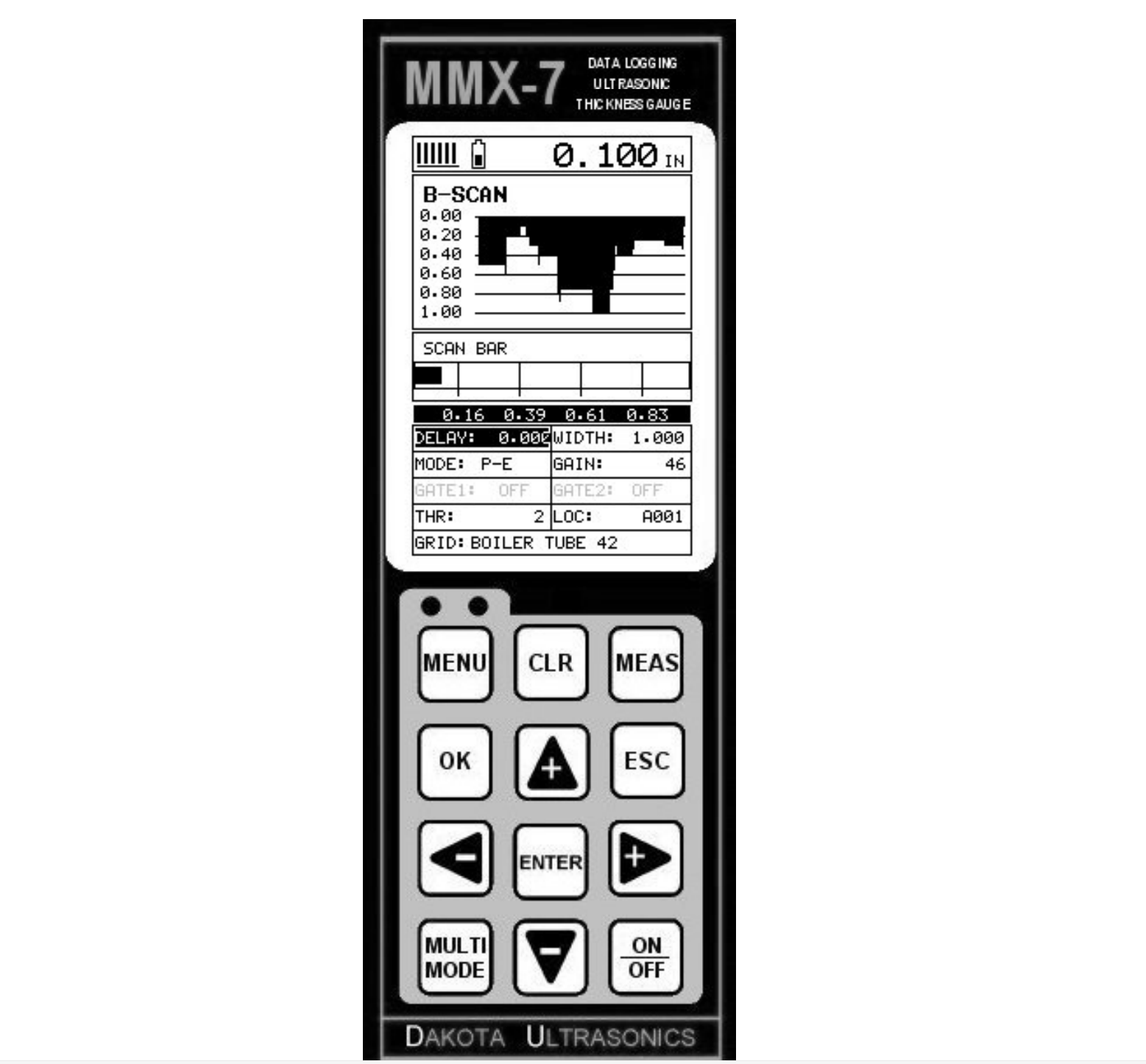

The new Dakota MMX-7 is a full featured ultrasonic thickness gauge offering an oversized display as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values.
The MMX-7 features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use.
美国Dakota MMX-7超声波测厚仪自带大尺寸显示功能和一套完整的数据采集系统，可存储上千数据值。其LCD图形显示屏分辨率高，造作简单，使用方便。
MMX-7不仅兼容了MX系列探头的耐久性等特长，还增加了涂层穿透功能--在被测物表面有油漆时，无需去除油漆而测量材料的净厚度。自带的RS-232串口输出，可下载数据给打印机和电脑。
除了以上MMX-6DL的全部功能，MMX-7的屏幕更大，增加了B扫描功能，存储量更大，多个校准和材料选择选项，选择低，中或高增益的选择。
The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
Built in hardware AGC gain control for through paint measurements in multi mode operation.
The MMX-7 has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
CE Certified
Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
The MMX-7 also comes complete with our Windows® PC software for transferring data to and from a PC.
The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
Use the AUTOFIND feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
Includes NIST-Traceable Calibration Certificate
2 Year Warranty
测量 | |
P-E(脉冲-回波)模式 | 0.63~254mm |
PECT(脉冲-回波涂层)模式 | - |
PETP(脉冲-回波温度补偿)模式 | - |
E-E(回波-回波)模式 | 1.27~102mm |
E-EV(回波-回波验证)模式 | - |
CT(测量涂层)模式 | - |
分辨率 | 0.01mm |
声速范围 | 1250～9999m/s |
单位 | 公制或英制 |
显示 | |
显示屏 | VGA灰色显示，240x160象素。可视区62x45.7mm，EL背光 |
显示屏(彩色) | - |
A-扫描 | - |
B-扫描 | 穿过断面视场，显示速度为每一屏15秒 |
大数字显示 | 标准厚度显示，10mm高 |
厚度条形扫描 | 每秒6个读数，在B-扫描和大数字显示中可见 |
超声波参数 | |
测量模式 | P-E/E-E |
脉冲 | 可调方波脉冲 |
接收 | 根据选择模式在40dB范围内采用手动或AGC增益控制 |
数据处理 | |
内置存储器 | 12000个读数(每个读数包括B扫描波形和仪器设置) |
其他 | |
电源 | 3节5号电池，可用150小时，电池电量显示，无操作5分钟后自动自动关机 |
键盘 | 12个触摸键 |
外壳 | 挤压铝机壳，底盖用镀镍铝板加密封垫封装 |
工作温度 | -10～60℃ |
尺寸 | 63.5x165x31.5mm |
重量 | 含电池385g |
质保 | 2年 |
The MMX-7 is supplied as a complete kit with the gauge, T-102-2700 probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.
订货型号
MMX-7 Dakota MMX-7 Ultrasonic Thickness Gauge with T-102-2700 PROBE, Z-160-0001
配件
TICC-MVX | Protective Holder for Long Body UT Gauges, F-149-0001 |
T-102-2700 | 1/4" diameter, 5.00 MHz, dual element, Hi-Damped transducer |
T-104-0600 | 1/2" diameter, 1.00 MHz dual element Composite transducer |
T-104-1000 | 1/2" diameter, 2.25 MHz dual element transducer |
T-102-1000 | 1/4" diameter, 2.25 MHz, dual element transducer, Side-in |
T-104-2000 | 1/2" diameter, 5.00 MHz dual element transducer |
T-101-2000 | 3/16" diameter, 5.0 MHz dual element transducer |
T-102-3300 | 1/4" diameter, 7.5 MHz, dual element transducer |
T-044-2000 | 1/2" 5.0 MHz Hi-Temp (650 F / 344 C) Transducer |
USB-RS232-ADAP | RS232 to USB Adapter |
T-212-2001 | 1/4", 5 MHz Hi-Temp (900 F / 500 C) Transducer |
