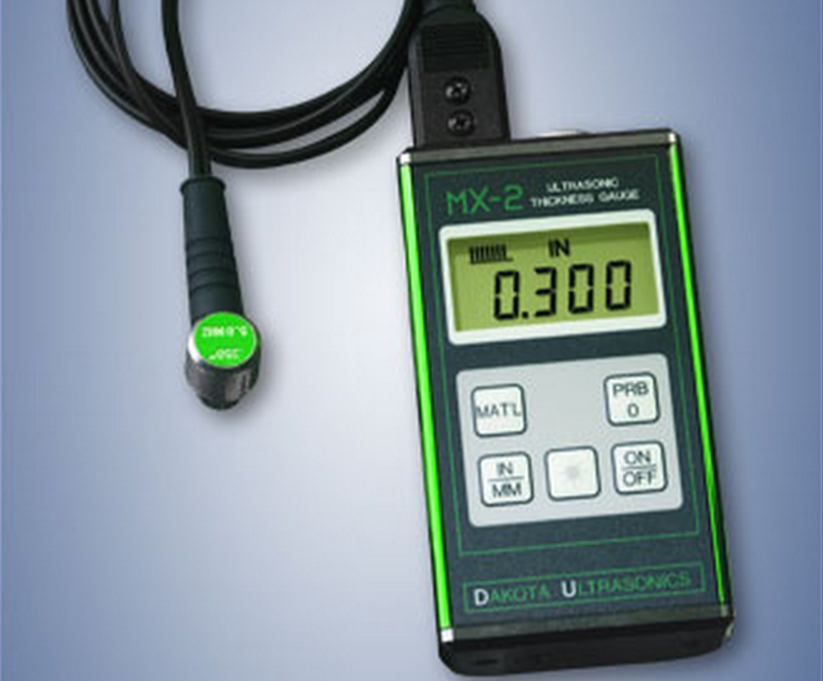

The Dakota MX-2 is ideal for the person that tests a few different materials regularly. The MX-2 contains 8 velocities of common materials and two velocities that the user can set using a simple sofware program.
The tool's backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries.
The MX-2 comes complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.
Velocity Settings
The MX-2 has 8 set velocities and 2 that are custom to the user's applications. The set velocities are as follows:
1. Steel4340-(.233)
2. Stainless Steel 303-( .223 )
3. Aluminum 2024 - ( .251 )
4. Cast Iron-(.179 )
5. Plexiglass-(.106 )
6. PVC - (.094)
7. Polystyrene(.092)
8. Polyurethane-(.070 )
9. Custom
Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
Measurements displayed in inches, inches/microsecond, millimeters, and meters/second.
Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units.
Four readings per second for single point measurements.
8 pre-set velocities and 2 custom velocities
Ability to change between velocities without the use of computer software
IP 65 Rated
Measuring Range | 0.025 to 19.999 inches |
Resolution | 0.001 inch |
Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec |
Dimensions | 2.5 W x 4.75 H x 1.25 D inches |
Range in Steel | 0.025-6.00" (0.60-150.0 mm) |
Resolution | .001" (0.01 mm) |
Display | 4½ - Digit, 0.5" Backlit LCD |
Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) |
Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C) |
Battery Type | Two 1.5V alkaline or 1.2V NiCad AA cells. |
Battery Life | Typically operates for 200 hours on alkaline and 130 hours on NiCad. |
Weight | 10 ounces (283 g) |
Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
Warranty | Gauge: 5 Years |
订货清单
The MX-2 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
订货型号
MX-2 Dakota MX-2 Ultrasonic Thickness Gauge Complete Kit, Z-140-0001
配件
TICC-M | Protective Holder for Most TI Series Gauges, F-112-0005 |
CF12 | Coupling Fluid - 12oz |
V-Block | V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 |
T-102-2000 | 1/4" diameter, 5.00 MHz, dual element transducer |
