加速度传感器中有一种是三轴加速度传感器，同样的它是基于加速度的基本原理去实现工作的，加速度是个空间矢量，一方面，要准确了解物体的运动状态，必须测得其三个坐标轴上的分量；另一方面，在预先不知道物体运动方向的场合下，只有应用三轴加速度传感器来检测加速度信号。由于三轴加速度传感器也是基于重力原理的，因此用三轴加速度传感器可以实现双轴正负90度或双轴0-360度的倾角，通过校正后期精度要高于双轴加速度传感器大于测量角度为60度的情况。三轴加速度传感器的好处就是在预先不知道物体运动方向的场合下，只有应用三维加速度传感器来检测加速度信号。三维加速度传感器具有体积小和重量轻特点，可以测量空间加速度，能够全面准确反映物体的运动性质。

美国Dytran的3003B是一款高性能微型三轴加速度传感器/振动传感器，压电式工作原理，自带放大器功能（IEPE）,可在高达175摄氏度工作环境下正常运行，转为井下钻头振动监测应用而设计。

The Dytran 3003B is a high performance triaxial IEPE accelerometer capable of operating at temperatures up to +347°F (+175°C) and was designed for down-hole drill head vibration monitoring.

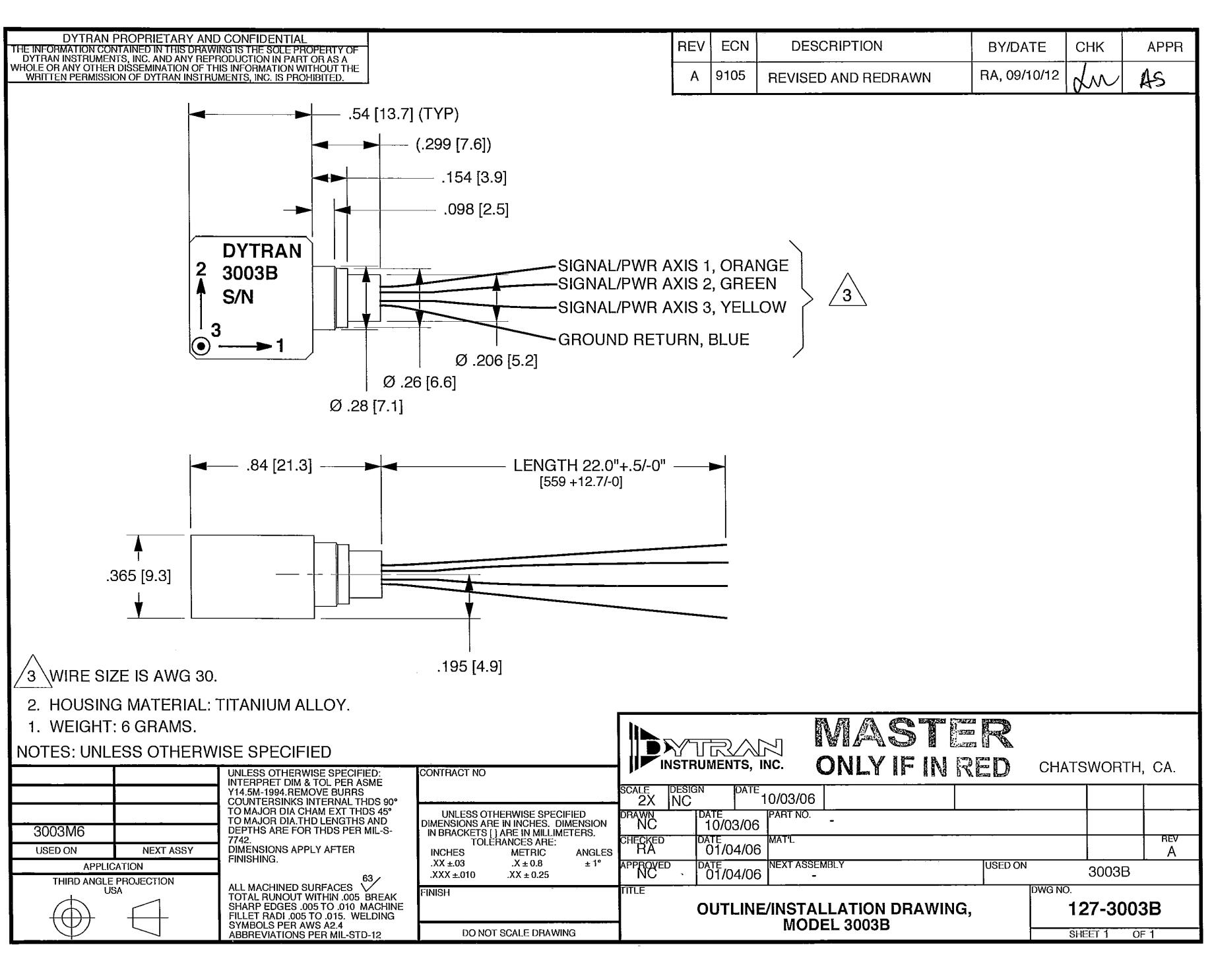

Sensors developed for down-hole vibration monitoring must be able to deliver accurate and reliable data, while simultaneously tolerating harsh conditions. Critical characteristics of these sensors include a miniature design, high temperature operation, and the ability to operate at low power levels. The Dytran 3003B is ideal for such applications, as it is packaged in a miniature titanium housing with a vertical height of just 0.37-inches (9.4-millimeters), is capable of reliable operation at temperatures up to +347°F (+175°C), and was specially designed to operate from +4.0 to +5.5 VDC compliance voltage.

The Dytran model 3003B triaxial accelerometer is offered with a sensitivity of 2 mV/g and 500g range, and is designed with adhesive mounting capabilities. Weighing just 6 grams, units incorporate four permanently attached 22-inch long lead wires.
