IEPE是指一种自带电量放大器或电压放大器的加速度传感器。IEPE是压电集成电路的缩写。因为由加速度传感器产生的电量是很小的,因此传感器产生的电信号很容易受到噪声干扰,需要用灵敏的电子器件对其进行放大和信号调理。IEPE中集成了灵敏的电子器件使其尽量靠近传感器以保证更好的抗噪声性并更容易封装。
美国Dytran的3006A是一款防潮型加速度传感器/振动传感器,灵敏度高,自带电量放大器。
The Dytran 3006A is a moisture resistant, high sensitivity single axis IEPE accelerometer with an overall weight of 12 grams.
Featuring a stainless steel construction, 100 mV/g sensitivity, 10-32 mounting hole and low noise JFET electronics, the Dytran model 3006A incorporates a 10-foot integral cable with a splash-proof boot at the point of sensor and cable connection. The cable-to-accelerometer boot seal makes it possible for the sensor to be temporarily submerged during testing. Units are hermetically sealed for reliable operation in high humidity and dirty environments, and case isolated to avoid EMI/ground loop interference.
特性
1. 100 mV/g sensitivity
2. 50g range
3. 0.32 to 5,000 Hz frequency range (±5%)
4. 10-foot integral cable
5. 10-32 tapped hole
6. 12 grams
7. Stainless steel
8. Hermetic
9. Case isolated
10. Splash proof boot
11. Moisture resistant
12. IEPE
应用
1. Short-term immersion
短期浸入
2. Structural monitoring
结构监测
3. Vibration testing in damp environments
潮湿环境下的振动试验

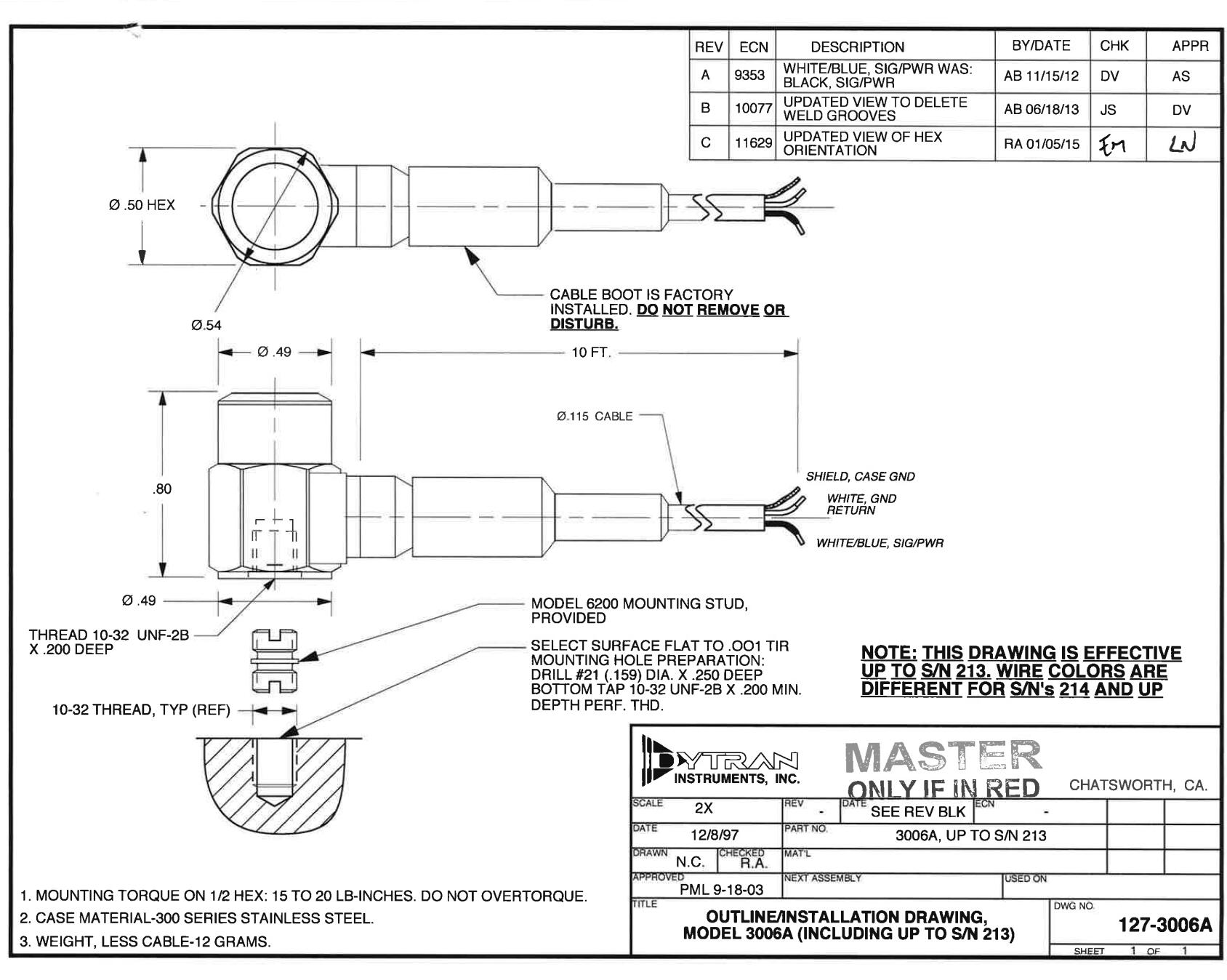

PHYSICAL
Weight, Less Cable, Max 0.42 oz 12 grams Supplied Accessories:
Mounting Provision : Tapped Hole 10-32 X .20 Deep 10-32 X .20 Deep
Cable Length 10 FT 25 m
Material : Base, Cap and Connector 300 S.S. 300 S.S.
Sensitivity, ±10% .
Range F.S for ± 5 Volts Output ±50 g ±490 m/s2
Frequency Range ±5% 0.32 to 5000 Hz 0.32 to 5000 Hz
±3 db 0.16 to 10000 Hz 0.16 to 10000 Hz
Resonant Frequency 35 kHz 35 kHz
Equivalent Electrical Noise Floor 0.00001 Grms 0.0001 m/s2 rms
Linearity [3] ± 1% % F.S. ± 1% % F.S.
Maximum Transverse sensitivity 5 % 5 %
Strain Sensitivity, Max 0.001 g/με 0.01 m/s2
Maximum Vibration ±600 G's,peak ±5886 m/s2 peak
Maximum Shock ±3000 G's,peak ±29430 m/s2 peak
Temperature Range -60 to+250 °F -54 to +121 °C
Seal, Accelerometer Hermetic Hermetic
Supply Current Range [4] 2 to 20 mA 2 to 20 mA
Compliance Voltage Range + 18 to +30 Volts + 18 to +30 Volts
Output Impedance,Typ 100 Ω 100 Ω
Bias Voltage +11 to +13 VDC +11 to +13 VDC
Discharge Time Constant 0.8 to 1.5 Sec 0.8 to 1.5 Sec
Output Signal Polarity for Acceleration Towards Top Positive Positive
Electrical Isolation, Case Ground to Mounting Surface 10 GΩ,min 10 GΩ,min
订货型号
3006A
配件
Supplied Accessories: (1) model 6200 mounting stud (10-32 to 10-32)
Recommended Accessories: model 4110C current source power unit
