IEPE是指一种自带电量放大器或电压放大器的加速度传感器。IEPE是压电集成电路的缩写。因为由加速度传感器产生的电量是很小的，因此传感器产生的电信号很容易受到噪声干扰，需要用灵敏的电子器件对其进行放大和信号调理。IEPE中集成了灵敏的电子器件使其尽量靠近传感器以保证更好的抗噪声性并更容易封装。
美国Dytran的3032A是一款微型IEPE加速度传感器/振动传感器，灵敏度10mV/g，重量仅1.5g。
The Dytran 3032A is a lightweight, miniature IEPE accelerometer, weighing just 1.5 grams and an overall footprint height of just 0.28 inches (7.1 millimeters).
Available with a sensitivity of 10 mV/g, the model 3032A incorporates a quartz sensing element, operating in shear mode, housed in a lightweight titanium construction. Units feature adhesive mounting and an 18-inch integral coaxial cable terminating to a 10-32 jack.
特性
1. 10 mV/g sensitivity
2. 500g range
3. 1 to 10,000 Hz (±10%)
4. 18-inch integral cable
5. Adhesive mount
6. 1.5 grams
7. Titanium
8. Low profile
9. IEPE
应用
1. Environmental Stress Screening (ESS)
环境应力筛选
2. HALT/HASS
高加速寿命试验与应力筛选
3. Product response testing
产品响应测试
4. General purpose vibration monitoring where mass loading is a concern
振动监测
Weight, including cable 0.2 oz 6 grams

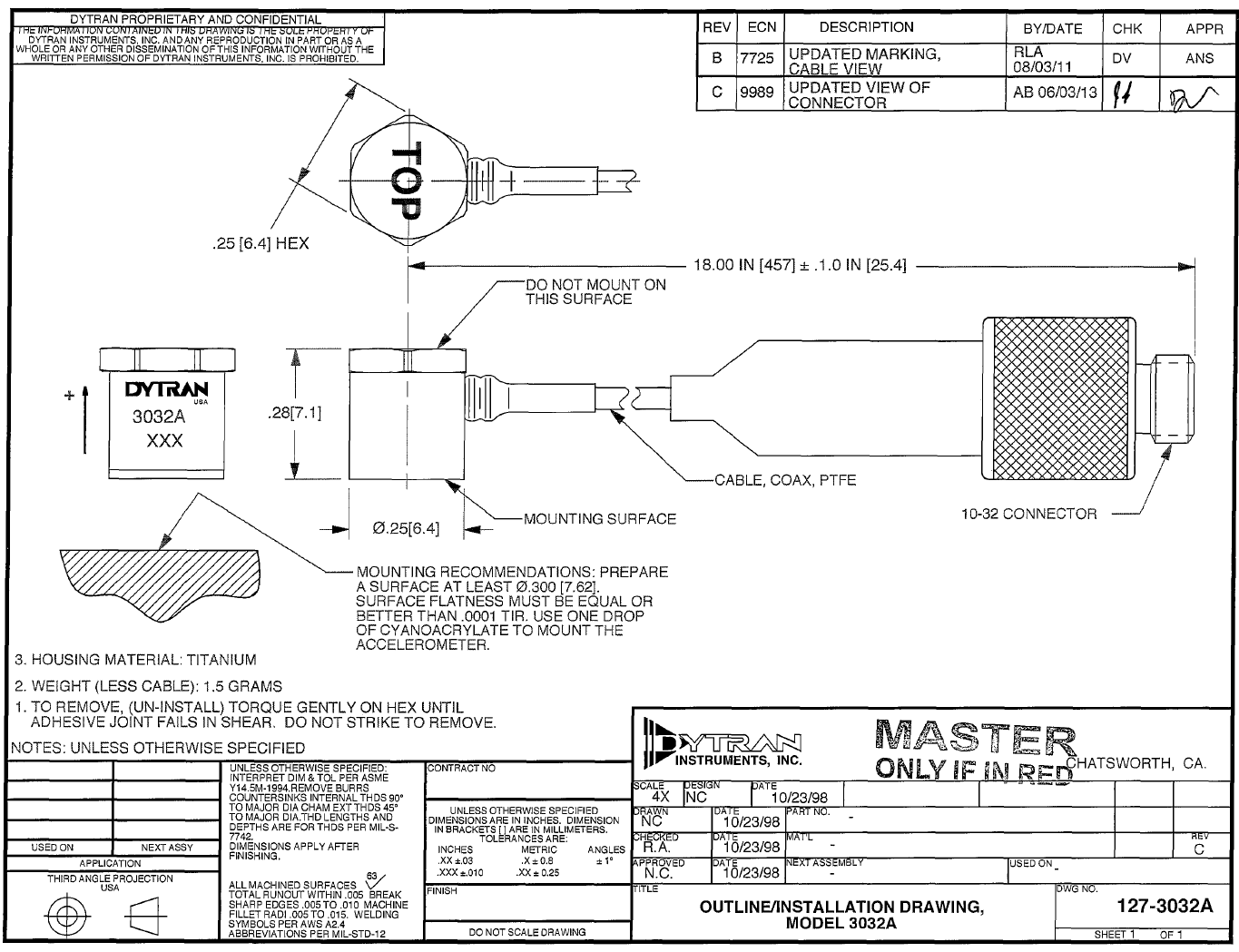

Size, accelerometer Hex x Height .25 x .28 Inches 6.35 x 7.11 mm
Mounting Provision
Connector 10-32, UNF-2A 10-32, UNF-2A
Housing Material Ti 6AI-4V Ti 6AI-4V
Sensitivity, ±10% [1] 10 mV/g 1.0 mV/m/s2
Range F.S for ± 5 Volts Output ±500 g ±4905 m/s2
Frequency Response, ± 10% 1 to 10000 Hz 1 to 10000 Hz
Frequency Response, ± 3dB .45 to 12000 Hz .45 to 12000 Hz
Resonant Frequency, Nominal > 80 kHz > 80 kHz
Equivalent Electrical Noise (Resolution) 0.007 grms 0.07 m/s2 rms
Linearity [2] ± 2 % F.S. ± 2 % F.S.
Maximum Transverse Sensitivity 5 % 5 %
Strain Sensitivity @ 250 με 0.001 g/με 0.01 m/s2/με
Maximum Vibration ±1000 g's,peak ±9810 m/s2 peak
Maximum Shock ±1500 g's,peak ±14715 m/s2 peak
Temperature Range (Accelerometer) -60 to 250 °F -51 to 121 °C
Supply Current Range [3] 2 to 20 mA 2 to 20 mA
Compliance Voltage Range +20 to +30 Volts +20 to +30 Volts
Output Impedance, Typ. 100 Ω 100 Ω
Output Bias Voltage +7 to +9 VDC +7 to +9 VDC
Discharge Time Constant, Nom 0.4 to 1.2 Sec 0.4 to 1.2 Sec
配件
1. Model 4110C current source power unit, model 6273 petro mounting wax
2. 电缆线：6011A
订货型号
3032A
相关型号
3032A1 超小型
3032M9 超小型
