加速度传感器中有一种是三轴加速度传感器，同样的它是基于加速度的基本原理去实现工作的，加速度是个空间矢量，一方面，要准确了解物体的运动状态，必须测得其三个坐标轴上的分量；另一方面，在预先不知道物体运动方向的场合下，只有应用三轴加速度传感器来检测加速度信号。由于三轴加速度传感器也是基于重力原理的，因此用三轴加速度传感器可以实现双轴正负90度或双轴0-360度的倾角，通过校正后期精度要高于双轴加速度传感器大于测量角度为60度的情况。三轴加速度传感器的好处就是在预先不知道物体运动方向的场合下，只有应用三维加速度传感器来检测加速度信号。三维加速度传感器具有体积小和重量轻特点，可以测量空间加速度，能够全面准确反映物体的运动性质。
美国Dytran的3053B是一款微型三轴加速度传感器/振动传感器，压电式工作原理，灵敏度10mV/g，自带4针接口和黏贴安装设计。

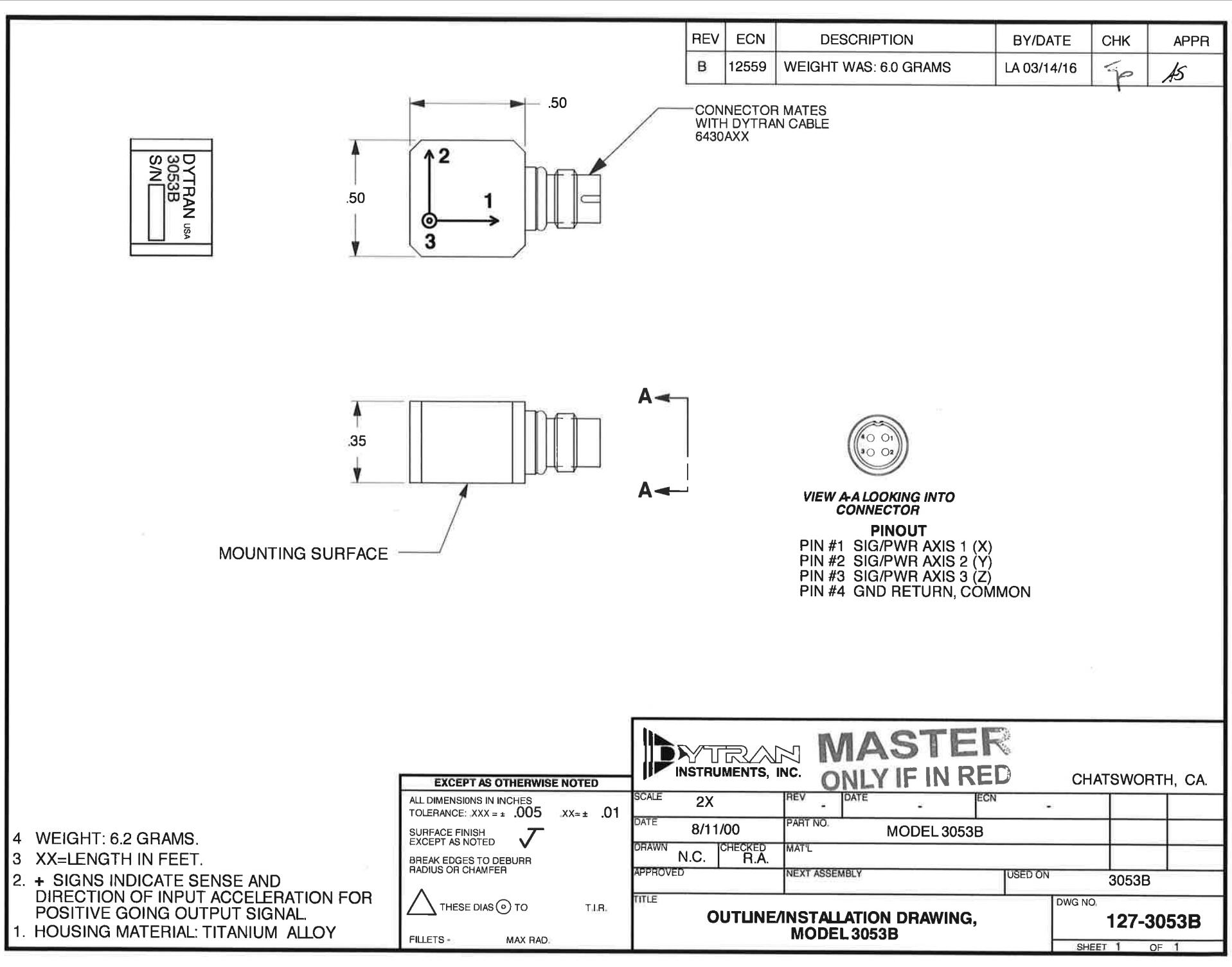

The Dytran 3053B is a rugged, low profile miniature triaxial IEPE accelerometer with a vertical height of 0.35 inches (8.9 millimeters) and an overall weight of 6.2 grams.
Offered with a 10 mV/g sensitivity, the sensor incorporates quartz shear sensing elements, packaged in a lightweight titanium housing, with an industry standard 4-pin radial connector and adhesive mounting capabilities. Units are hermetically sealed for reliable operation in high humidity and dirty environments and also case isolated to avoid EMI/ground loop interference.
特性
1. 10 mV/g sensitivity
2. 500g range
3. 2 to 5,000 Hz frequency range (±10%)
4. 4-pin Dytran designed 1/4-28 radial connector
5. Adhesive mount
6. 6.2 grams
7. Titanium
8. Hermetic
9. Case isolated
10. Triaxial
11. IEPE
应用
1. Environmental Stress Screening (ESS)
环境应力筛选
2. Product response testing
产品响应测试
3. General purpose triaxial vibration measurements where space is at a premium
一般目的三轴振动测量
Weight 0.22 oz 6.2 grams
Connector [2] 4-Pin 4-Pin
Sensitivity, -10/+15% [3] 10 mV/g 1.02 mV/ m/s2
Range F.S. (each axis) ± 500 g ± 4900 m/s2
Frequency Response, ± 10% 2 to 5000 Hz 2 to 5000 Hz
Resonant Frequency >30 kHz >30 kHz
Equivalent Electrical Noise Floor <0.007 g rms <0.07 m/s2 rms
Linearity [4] ± 1 %F.S ± 1 %F.S
Transverse Sensitivity, Max. 5% 5%
Maximum Vibration ± 600 g ± 5880 m/s2 pk
Maximum Shock ±5000 gpk ±49000 m/s2 pk
Temperature Range -60 to +250 °F -51 to 121 °C
Seal Hermetic Hermetic
Coefficient Of Thermal Sensitivity 0.03 %/°F 0.054 %/°C
ELECTRICAL
Supply Current [5] 2 to 20 mA 2 to 20 mA
Compliance Voltage Range +18 to +30 V +18 to +30 V
Output Impedence Typ. 100 Ω 100 Ω
Bias Voltage 9 to 11 VDC 9 to 11 VDC
Discharge Time Constant 0.3 to 1.0 sec 0.3 to 1.0 sec
Ground Isolation >10 MΩ >10 MΩ
配件
Recommended Accessories: model 4114B1 current source power unit, model 6273 petro mounting wax
Compatible Cables: 6430A, 6431A, 6801A, 6830A
订货型号
3053B
3053B1
3053B2
相关型号
3053M10
