IEPE是指一种自带电量放大器或电压放大器的加速度传感器。IEPE是压电集成电路的缩写。因为由加速度传感器产生的电量是很小的，因此传感器产生的电信号很容易受到噪声干扰，需要用灵敏的电子器件对其进行放大和信号调理。IEPE中集成了灵敏的电子器件使其尽量靠近传感器以保证更好的抗噪声性并更容易封装。
美国Dytran的3097A1是一款微型IEPE加速度传感器/振动传感器，灵敏度10mV/g，自带电量放大功能。
The Dytran 3097A1 is a lightweight miniature IEPE accelerometer, offered with a sensitivity of 10 mV/g.

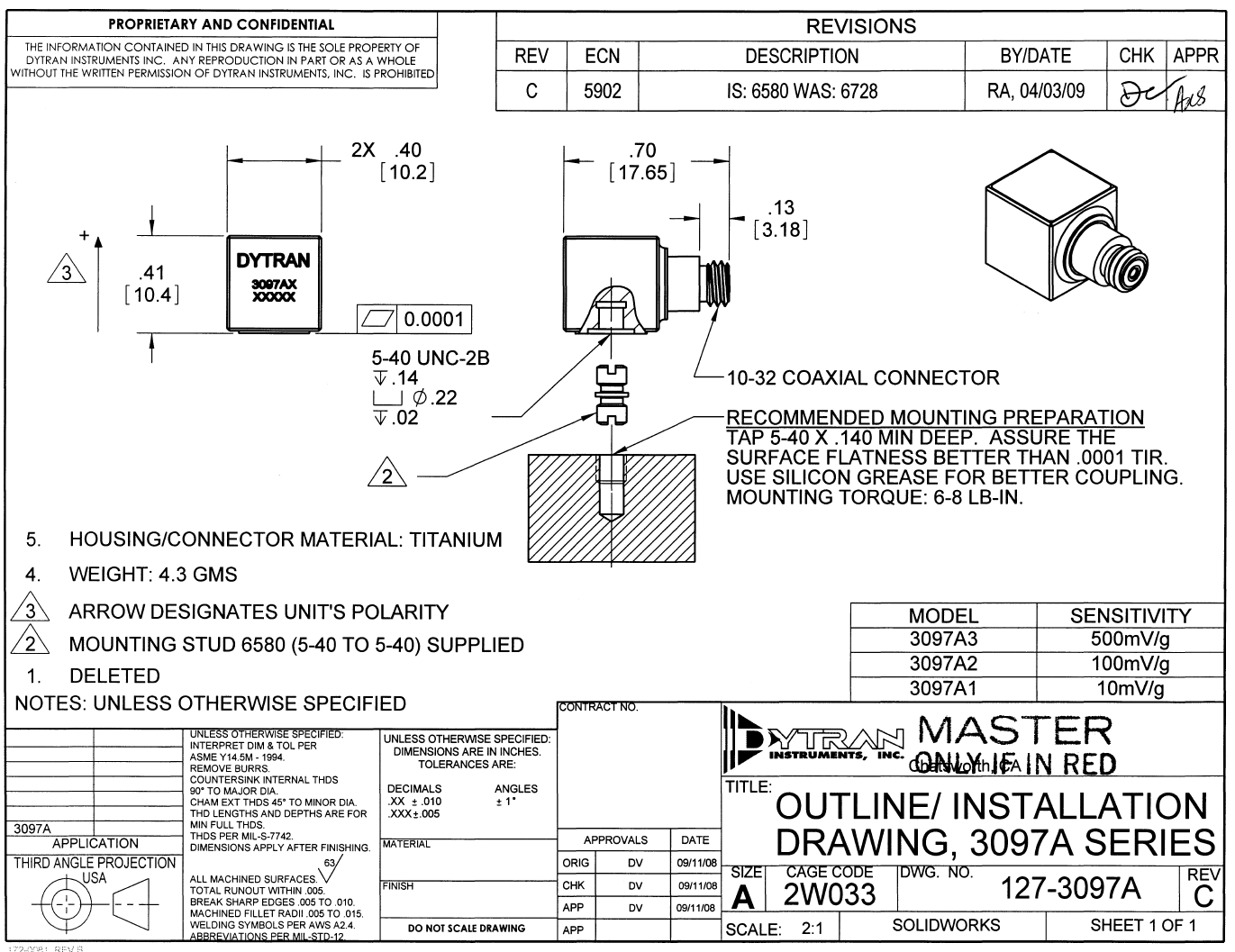

The accelerometer incorporates a ceramic shear sensing element and ultra low noise JFET electronics, with materials housed in a highly durable 0.4-inch (10.2 millimeter) laser welded titanium cube weighing just 4.3 grams. The model 3097A1 features a 5-40 tapped hole and industry standard 10-32 radial connector.
特性
1. 10 mV/g sensitivity
2. 500g range
3. 0.3 to 5,000 Hz (±5%)
4. 10-32 radial connector
5. 5-40 tapped hole
6. 4.3 grams
7. Titanium
8. Hermetic
9. Low noise JFET electronics
10. Miniature cubic design
11. IEPE
应用
1. Hand-arm and whole-body vibration measurements
机械手臂和全身测量
2. Modal and structural analysis
模型与结构分析
3. Noise, Vibration and Harshness (NVH)
噪音，振动和不平顺性检测
4. General purpose vibration measurements
通用振动测量
Weight 0.15 oz 4.3 grams
Sensitivity, ±5%
Range for ± 5 Volts Output 500 G peak 4905 m/s2
Frequency Response, ±5% 0.3 to 5000 Hz 0.3 to 5000 Hz
±15% 0.15 to 10,000 Hz 0.15 to 10,000 Hz
Resonant Frequency > 35 kHz > 35 kHz
Linearity ±1 % F.S.
Maximum Transverse sensitivity 5 % 5 %
Strain Sensitivity @ 250με 0.002 G/με 0.02 m/s2/με
Phase Response ±5° 5 to 3000 Hz 5 to 3000 Hz
Maximum Vibration 600 G peak 5886 m/s2 peak
Maximum Shock 5000 G peak 49050 m/s2 peak
Temperature Range -60 to 200 °F -51 to 93 °C
Supply Current Range [3] 2 to 20 mA 2 to 20 mA
Compliance Voltage Range +18 to +30 Volts +18 to +30 Volts
Output Impedence,Typ 100 Ω 100 Ω
Bias Voltage +11 to +13 VDC +11 to +13 VDC
Discharge Time Constant 1.5 to 2.5 Sec 1.5 to 2.5 Sec
配件
1. Model 6580 mounting stud (5-40 to 5-40)
2. Model 4110C current source power unit, model 6222 adhesive mounting base, model 6265 magnetic mounting base
3. 电缆线：6010A, 6011A, 6012A, 6016A, 6018A, 6022A, 6026A, 6032A, 6033A, 6049A, 6050A, 6051A, 6053A, 6054A, 6066A, 6069A, 6093A, 6099A, 6400A, 6401A, 6412A, 6429A, 6924A, 6930A, 6991A
订货型号
3097A1 超小型
3097A2 超小型
3097A3 超小型
3097A1T 超小型TEDS
3097A2T 超小型TEDS
3097A3T 超小型TEDS
