在工业自动控制、汽车、地震测量、军事和空间系统等领域中的许多场合都是用冲击加速度传感器，由于受工作环境的限制，要求冲击加速度传感器应具有高的谐振频率，动态性能要好，以保证快速、准确测试出被测对象的冲击力或冲击加速度。
冲击加速度传感器，采用MEMS技术与微电子技术成果研制而成,集加速度传感器、信号变换器、电源变换器、信号滤波电路、饱和控制与温度补偿于一体,具有微体积、微功耗、微噪声、高集成、高稳定、高可靠、低温漂、环境适应性强等特点。美国Dytran的3200B是一款IEPE冲击型加速度传感器，结构坚固，尺寸小，适用于最大量程达70000g 以上的冲击加速度参数测量与控制。
The Dytran 3200B is a highly rugged IEPE accelerometer with a natural frequency greater than 90 kHz, designed to measure severe shocks and other extreme short duration events. High shock measurements are typically characterized as such above the range of 2,500 g's. In order to accurately measure shock levels of this magnitude, accelerometers must have a high natural frequency, rugged construction and be fairly compact in size.
Available with a 70,000g range, Dytran 3200B features a quartz crystal sensing element, operating in compression mode, packaged in a stainless steel housing for a total weight of 6 grams. Units are electrically base isolated and feature a broad frequency response, 1/4-28 mounting stud and 10-32 axial connector.
特性
1. 0.05 mV/g sensitivity
2. 70,000g range
3. 0.35 to 10,000 Hz frequency range (±10%)
4. 10-32 axial connector
5. 1/4-28 mounting stud
6. 6 grams
7. Stainless steel
8. Base isolated
9. Lightweight
10. High natural frequency of >90 kHz
11. IEPE
应用
1. Drop testing
2. Far field blast testing
3. Pyrotechnic testing
4. Shock testing
SPECIFICATION VALUE UNITS
DISCHARGE TIME CONSTANT 1.0 to 1.5 SECOND
LOW FREQUENCY -3db POINT, NOM. .16 Hz
LOW FREQUENCY -5% POINT .50 Hz
FREQUENCY RESPONSE, ±10% .35 to 10000 Hz
LINEARITY [3] ±1 % F.S.
TRANSVERSE SENSITIVITY, MAXIMUM 3.0 %
OUTPUT IMPEDANCE, NOM. 100
OHMS
OUTPUT VOLTAGE BIAS +7.5 to +9.5 VDC
SUPPLY CURRENT RANGE [4] 2 to 20 mA
COMPLIANCE (SUPPLY) VOLTAGE RANGE [4] +18 to +30 VDC
OPERATING TEMPERATURE RANGE -60 to +250 oF

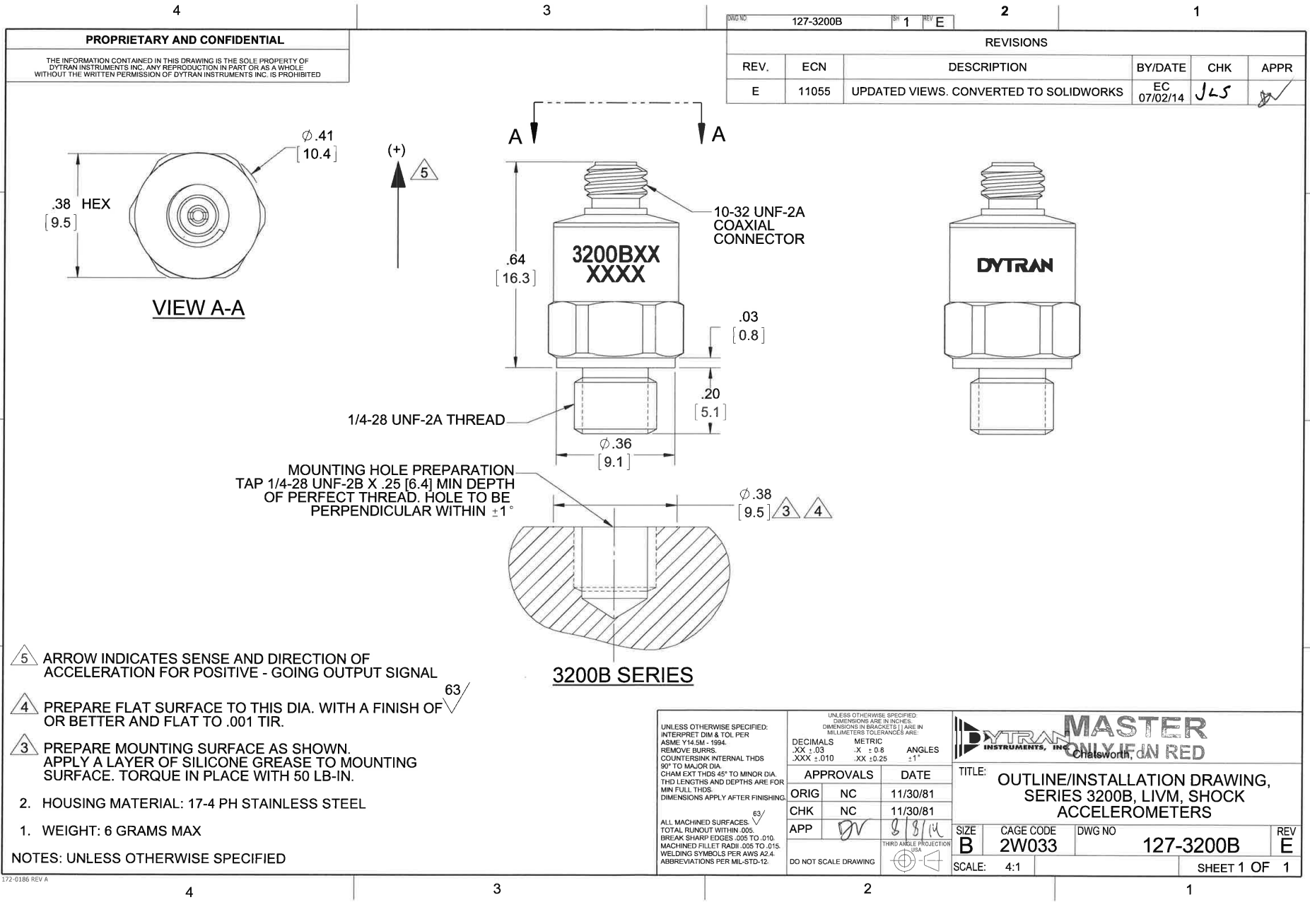

SIZE (HEX x HEIGHT) [5] 3/8 x .64 INCHES
WEIGHT 6 GRAMS
CONNECTOR, TOP MOUNTED 10-32 MICRO-COAXIAL
MATERIAL, HOUSING/CONNECTOR 17-4 PH STAINLESS STEEL
MOUNTING PROVISION, 3200B/3200BT/3200BM 1/4-28/10-32/M6 x 1.0
INTEGRAL STUD
ENVIRONMENTAL SEAL EPOXY
ISOLATION, CASE TO MOUNTING SURFACE (MIN.) 10 GIGOHMS
配件
Recommended Accessories: model 4010C current source power unit
Compatible Cables: 6010A, 6011A, 6012A, 6016A, 6018A, 6022A, 6026A, 6032A, 6033A, 6049A, 6050A, 6051A, 6053A, 6054A, 6066A, 6069A, 6093A, 6099A, 6400A, 6401A, 6412A, 6429A, 6924A, 6930A, 6991A
订货型号
MODELS RANGE F.S. MAXIMUM SENSITIVITY ELECTRICAL NATURAL
SHOCK (±10%) [2] NOISE FREQUENCY
(G's) (G's) (mV/G) (G's) (kHz)
3200B +/-70,000 100,000 0.05 1.4 >90
3200B2 +/-50,000 100,000 0.1 0.7 >90
3200B3 +/-20,000 100,000 0.25 0.28 >90
3200B4 +/-10,000 50,000 0.5 0.14 >90
3200B5 +/- 5,000 50,000 1.0 0.07 >90
3200B6 +/- 2,500 50,000 2.0 0.035 >90
3200BT +/-70,000 100,000 0.05 1.4 >90
3200B2T +/-50,000 100,000 0.1 0.7 >90
3200B3T +/-20,000 100,000 0.25 0.28 >90
3200B4T +/-10,000 50,000 0.5 0.14 >90
3200B5T +/- 5,000 50,000 1.0 0.07 >90
3200B6T +/- 2,500 50,000 2.0 0.035 >90
3200BM +/-70,000 100,000 0.05 1.4 >90
3200B2M +/-50,000 100,000 0.1 0.7 >90
3200B3M +/-20,000 100,000 0.25 0.28 >90
3200B4M +/-10,000 50,000 0.5 0.14 >90
3200B5M +/- 5,000 50,000 1.0 0.07 >90
3200B6M +/- 2,500 50,000 2.0 0.035 >90
相关型号
3086A1 70,000 100,000 0.05 1.40 100 45
3086A2 50,000 100,000 0.1 0.7 100 45
3086A3 20,000 100,000 0.25 0.28 100 45
3086A4 10,000 50,000 0.5 0.14 100 45
3086A5 5000 50,000 1.0 0.07 100 45
3086A6 2500 50,000 2.0 0.035 100 45
3086A1T 70,000 100,000 0.05 1.40 100 45
3086A2T 50,000 100,000 0.1 0.7 100 45
3086A3T 20,000 100,000 0.25 0.28 100 45
3086A4T 10,000 50,000 0.5 0.14 100 45
3086A5T 5000 50,000 1.0 0.07 100 45
3086A6T 2500 50,000 2.0 0.035 100 45
