加速度传感器中有一种是三轴加速度传感器，同样的它是基于加速度的基本原理去实现工作的，加速度是个空间矢量，一方面，要准确了解物体的运动状态，必须测得其三个坐标轴上的分量；另一方面，在预先不知道物体运动方向的场合下，只有应用三轴加速度传感器来检测加速度信号。由于三轴加速度传感器也是基于重力原理的，因此用三轴加速度传感器可以实现双轴正负90度或双轴0-360度的倾角，通过校正后期精度要高于双轴加速度传感器大于测量角度为60度的情况。三轴加速度传感器的好处就是在预先不知道物体运动方向的场合下，只有应用三维加速度传感器来检测加速度信号。三维加速度传感器具有体积小和重量轻特点，可以测量空间加速度，能够全面准确反映物体的运动性质。

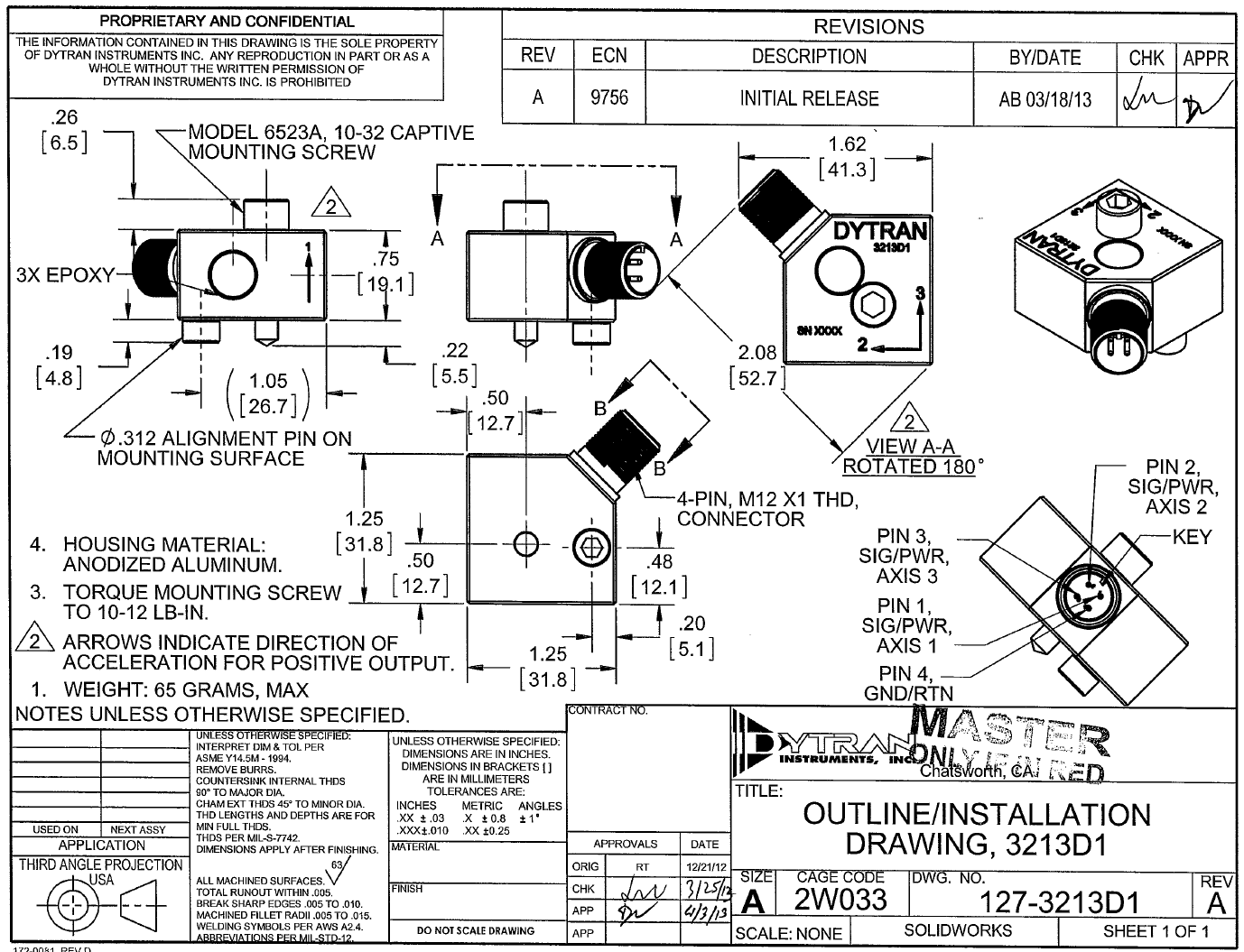

美国Dytran的3213D1是一款三轴加速度传感器/振动传感器，压电式工作原理，自带放大器功能（IEPE）, 内建静电屏蔽，防噪防静电，自带4针M12接口和10-32的螺纹通孔。
The Dytran 3213D1 is a low profile, triaxial IEPE piezoelectric accelerometer with built-in Faraday shield for electrostatic noise immunity, a sensitivity of 100 mV/g, a radial 4-pin M12 connector and a 10-32 thru hole mount. This unique configuration allows the sensor to be turned 360° prior to securing for ease of sensor installation.
Design of the model 3213D1 incorporates ceramic shear sensing elements, packaged in a robust aluminum housing. The series is hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
特性
1. 100 mV/g sensitivity
2. 50g range
3. Axis 1 & 2: 2 to 7,000 Hz frequency range (±3dB)
4. Axis 3: 2 to 10,000 Hz frequency range (±3dB)
5. 4-pin radial connector
6. 10-32 thru hole mount
7. 65 grams
8. Aluminum
9. Hermetic
10. Case isolated
11. 360° cable orientation
12. Triaxial
13. IEPE
应用
1. Low profile or space constrained vibration monitoring applications
受限空间振动监控应用
2. Walkabout data collection
徒步旅行数据收集
3. General purpose triaxial vibration monitoring
一般用途振动监测
Weight, Max. 2.3 oz 65 grams
Connector 4 Pin M12 X 1 M12 X 1
Material Housing Anodized Aluminum Anodized AluminumConnector 300 Series SST 300 Series SST
Sensitivity, ±10% [1] 100 mV/g 10.2 mV/m/s2
Range for ± 5 Volts Output 50 g 491 m/s2
Frequency Response, ±3 dB Axis 3 2 to 10000 Hz 2 to 10000 Hz
Axes 1 and 2 2 to 7000 2 to 7000
Resonant Frequency > 20 kHz > 20 kHz
Broad Band Resolution 0.00016 grms 0.002 m/s2 rms
Maximum Transverse Sensitivity 7 % 7 %
Base Strain Sensitivity @ 250με 0.002 g/με 0.02 m/s2/με
Maximum Vibration 500 g peak 4905 m/s2 peak
Maximum Shock 5000 g peak 49050 m/s2 peak
Temperature Range -60 to 250 °F -51 to 121 °C
Supply Current Range [3] 2 to 20 mA 2 to 20 mA
Compliance Voltage Range 18 to 30 Volts 18 to 30 Volts
Bias Voltage 11 to 13 VDC 11 to 13 VDC
Discharge Time Constant 0.5 to 2.0 Sec 0.5 to 2.0 Sec
Isolation Case Isolated Case Isolated
订货型号
3213D1
配件
1. Model 6523A mounting screw (10-32)
2. 电缆线：model 4114B1 current source power unit
