IEPE是指一种自带电量放大器或电压放大器的加速度传感器。IEPE是压电集成电路的缩写。因为由加速度传感器产生的电量是很小的，因此传感器产生的电信号很容易受到噪声干扰，需要用灵敏的电子器件对其进行放大和信号调理。IEPE中集成了灵敏的电子器件使其尽量靠近传感器以保证更好的抗噪声性并更容易封装。
美国Dytran的3234A1是一款IEPE加速度传感器/振动传感器，灵敏度10 mV/g，自带10-32接口和10-32螺纹，集成陶瓷剪切感应元件。
The Dytran 3234A1 is a single axis IEPE accelerometer, with a unique cubic design and is available with a 10 mV/g sensitivity. Model 3234A1 incorporates a ceramic shear sensing element, packaged in a rugged titanium housing weighing 12 grams. Units are base isolated to avoid EMI/ground loop interference.
Featuring a 10-32 radial connector and 10-32 stud mounting capabilities, units incorporate low noise JFET electronics and are hermetically sealed for reliable performance in high humidity and dirty environments
特性
1. 10 mV/g sensitivity
2. 500g range
3. 1 to 10,000 Hz frequency range (±5%)
4. 10-32 radial connector
5. 10-32 tapped hole
6. 12 grams
7. Titanium
8. Hermetically sealed
9. Base isolated
10. Low noise JFET electronics
11. IEPE
应用
1. Modal analysis
模态分析
2. Noise, Vibration and Harshness (NVH)
噪音，振动和不平顺性
3. Squeak & Rattle
异响检测
4. General purpose vibration applications
一般用途振动应用
WEIGHT 12 grams

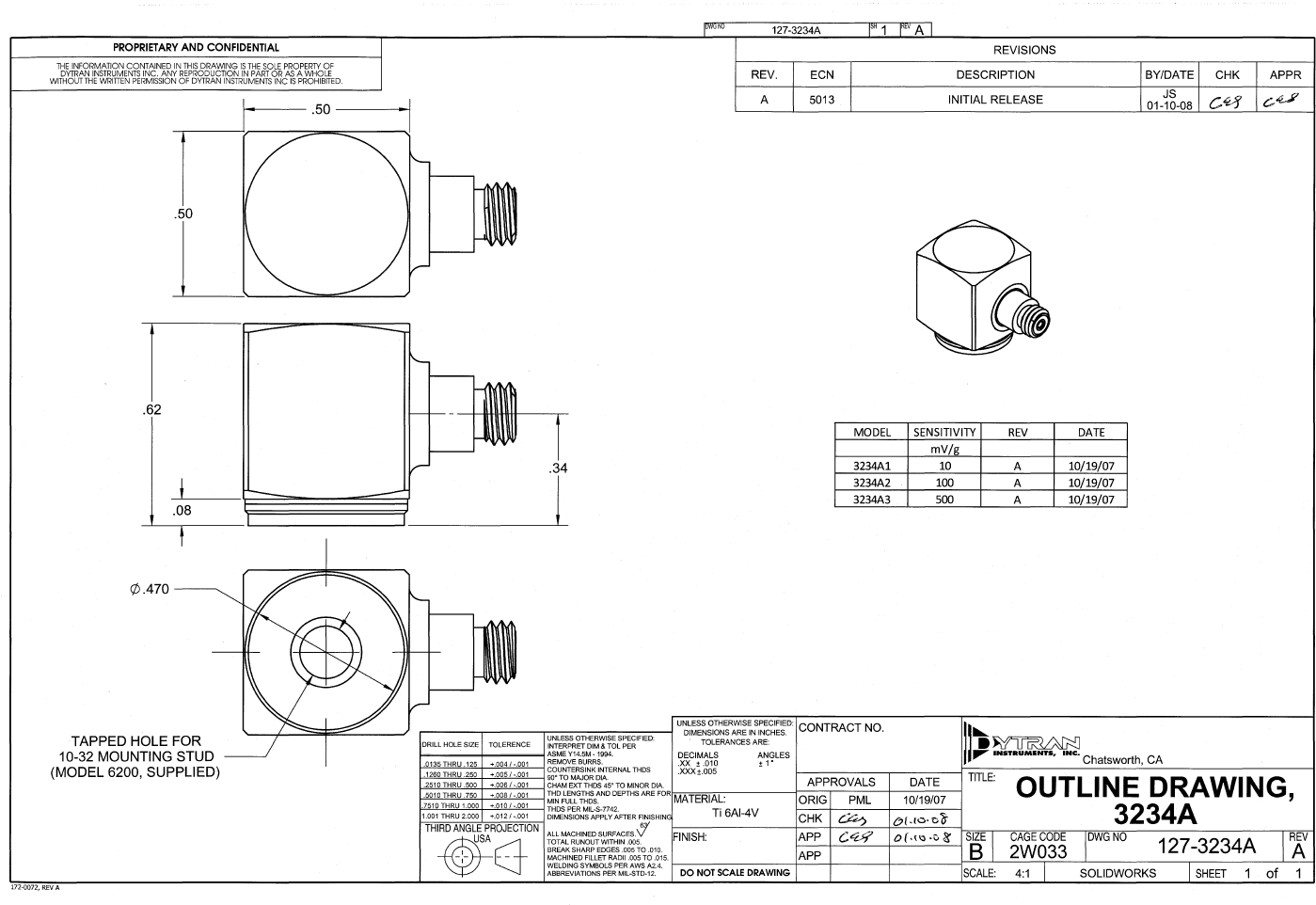

SIZE, SQUARE x HEIGHT .50 x 0.62 inches
MOUNTING PROVISION 10-32 X .150 DEEP TAPPED HOLE
CONNECTOR, SIDE MOUNTED 10-32 Coaxial
MATERIAL, BASE, CAP & CONNECTOR TITANIUM
SEISMIC ELEMENT TYPE CERAMIC, PLANAR SHEAR
MODELS
3234A1 3234A2 3234A3
PERFORMANCE
SENSITIVITY, ± 5% [1] 10 100 500 mV/g
RANGE F.S. FOR ± 5 VOLTS OUTPUT ± 500 ±50 ±10 g's
FREQUENCY RANGE, ± 5% (all models) 1 to 10,000 Hz
RESONANT FREQUENCY (all models) >35 kHz
EQUIVALENT ELECTRICAL NOISE .007 .0007 .0002 grms
LINEARITY [2] (all models) ±2 % F.S.
TRANSVERSE SENSITIVITY, MAX. (all models) 5 %
BASE STRAIN SENSITIVITY 0.0028 g’s/μσ
3234A1 3234A2 3234A3
ENVIRONMENTAL
MAXIMUM VIBRATION/SHOCK 600/5000 400/5000 200/5000 ± gpk
TEMPERATURE RANGE -60 to +250 -60 to +225 -60 to +180 °F
SEAL, HERMETIC Glass-to-metal/welded
COEFFICIENT OF THERMAL SENSITIVITY .06 %/°F
ELECTRICAL
SUPPLY CURRENT [3] 2 to 20 mA
COMPLIANCE VOLTAGE RANGE 18 to +30 Volts
OUTPUT IMPEDANCE, TYP. 100 Ω
BIAS VOLTAGE +11 to +13 VDC
DISCHARGE TIME CONSTANT 0.5 to 1.0 Sec
OUTPUT SIGNAL POLARITY Positive
FOR ACCELERATION TOWARD TOP
ELECTRICAL ISOLATION 10MΩ MIN
订货型号
型号 | 灵敏度(mV/g) | 量程（g） | 最大冲击力（g） | 工作温度(°F) |
3234A1 | 10 | ± 500 | 5000 | -60 - +250 |
3234A2 | 100 | ± 50 | 5000 | -60 - +225 |
3234A3 | 500 | ± 10 | 5000 | -60 - +180 |
配件
1. Model 6200 mounting stud (10-32 to 10-32)
2. Model 4110C current source power unit, model 6213 adhesive mounting base, model 6220 isolated mounting stud, model 6258 magnetic mounting base
3. 电缆线： 6010A, 6011A, 6012A, 6016A, 6018A, 6022A, 6026A, 6032A, 6033A, 6049A, 6050A, 6051A, 6053A, 6054A, 6066A, 6069A, 6093A, 6099A, 6400A, 6401A, 6412A, 6429A, 6924A, 6930A, 6991A
