柱式传感器也可称为柱式测力传感器，是称重传感器的一种，是一种将质量信号转变为可测量的电信号输出的装置，主要有S型、悬臂型、轮辐式、板环式、单点式、桥式、柱筒式等几种样式。
The load cells of the Pendeo® Truck PR6224 range are particularly designed for use on weighbridges. They are based on our well known, unique design principle which has been tested in the harsh surroundings of weighbridges for many years.
Combined with the mounting kits, the sophisticated design of the load cell Sartorius PR6224 allows to counterbalance movements caused by mechanical or thermal expansion or contraction of the weighbridge construction. The unique combination of the selected geometry and material | surface hardness parameters guarantees perfect rolling characteristics, high restoring forces and long-term maintenance-free operation.
Easy installation
安装简单
Insensitive RS485 output signal
RS485信号输出
Best application for weighbridges
可满足汽车衡应用的最高要求
Default, maintenance free and compact construction
可恢复出厂设置，无需维护，结构紧凑
Very robust construction into hermetically sealed stainless steel housing
不锈钢外壳，结构坚固，密封设计
DMS technology for a high protection against lightning
防雷击
High overload capacity (until 150 %)
防过载
Additional protection through diagnostic function
精密的自诊断功能

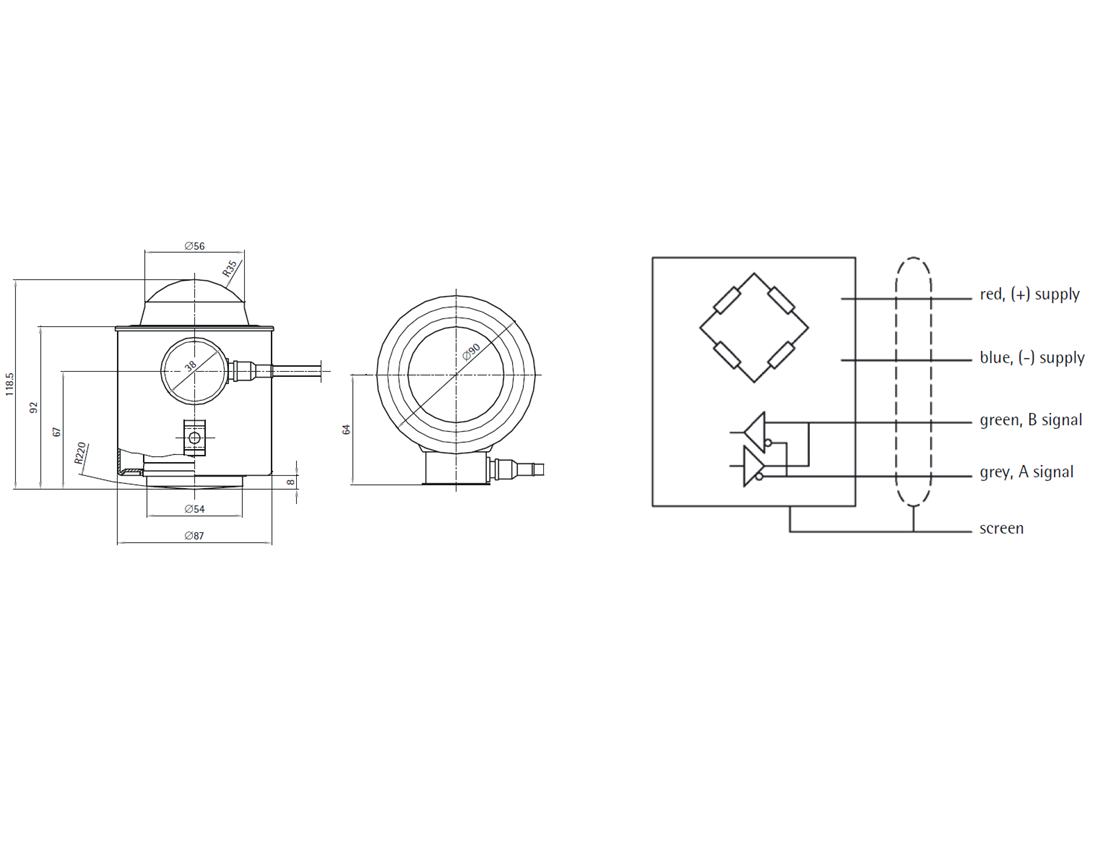

Maximum capacity highest limit of specified measuring range Emax 25 50 t
Rated output output signal at max. capacity Cn Normalized to Emax
Sensitivity at rated capacity maximum resolution of rated capacity for Emax > 25 t d 200,000
400,000
200,000
400,000
digit
Max. usable load upper limit for measurements Eu 37.5 75 t
Destructive load danger of mechanical destruction Ed >75 >150 t
Nominal deflection Snom 0.5 0.8 mm
Accuracy class C3 C6
Accuracy class 0.015 0.008
Minimum dead load lowest limit of specified measuring range Emin 0 0 % Emax
Minimum LC
verification interval
minimum load cell verification interval (vmin = Emax/Y) Y 14,000 20,000
Creep divisions factor factor for min. dead load output return (DR = 0.5 Emax/Z) Z 3,000 8,000
Tolerance on rated output permissible deviation from rated output dc < 0.07 < 0.07 % Emax
Zero output signal load cell output signal under unloaded conditions Smin < 1 < 1 % Emax
Repeatability error max. change in load cell output for repeated loading εR < 0.005 < 0.005 % Emax
Creep during 30 min. max. change in load cell output under nominal load dcr < 0.015 < 0.008 % Emax
Non-linearity max. deviation from the best straight line through zero dLin < 0.01 < 0.01 % Emax
Hysteresis max. diff. in LC output between loading and unloading dhy < 0.0165 < 0.008 % Emax
Temperature effect on Smin max. change of Smin/10K ΔT over BT referred to Cn TKSmin < 0.01 < 0.007 % Emax/10K
Temperature effect on Cn max. change of Cn/10K ΔT over BT referred to Cn TKc < 0.01 < 0.005 % Emax/10K
Insulation impedance between circuit and housing at 50 V DC RIS > 1,000 > 1,000 MO
Nominal supply voltage UN 24 24 V DC
Supply voltage range to hold the specified performance BU 20… 28 20… 28 V DC
Nominal ambient temp. range to hold the specified performance BT -10... +40 -10... +40 °C
Usable ambient temp. range permissible for continuous operation without damage BTu -30... +70 -30... +70 °C
Storage temp. range transportation and storage BTl -40... +95 -40... +95 °C
Permissible eccentricity permissible displacement from nominal load line Sex 10 10 mm
Vibration resistance resistance against oscillation (IEC 68-2-6 Fc) 20 g, 100 h,
订货型号
PR 6224/25t 25 t C3 | C6 150 > 300
PR 6224/50t 50 t C3 | C6 150 > 300
PR6224/25t | PR6224/25t C3 | PR6224/25t C6 |
PR6224/50t | PR6224/50t C3 | PR6224/50t C6 |
配件
PR 6021/00N Load and bottom disc set of top and bottom load disc, tool steel,
anti-corrosion coating
9405 360 21001
PR 6021/01N Mounting Kit including top and bottom load disc, anti-corrosion coating 9405 360 21011
PR 6024/68S digital stainless steel-cable junction box for up to 8 digital load cells, made of stainless steel 9405 360 24682
PR 6024/62S 24 V DC power supply for up to 8 digital load cells, made of stainless steel 9405 360 24622
PR 6124 P Power cable screened power cable for a safe power supply 9405 361 24xx4
PR 6124/31P Power cable 30 m 9405 361 24314
PR 6124/51P Power cable 50 m 9405 361 24514
PR 6124/12P Power cable 100 m 9405 361 24124
PR 6124/16P Power cable 150 m 9405 361 24164
PR 6124 D Data cable screened data connection cable 9405 361 24xx3
PR 6124/31D Data cable 30 m 9405 361 24313
PR 6124/51D Data cable 50 m 9405 361 24513
PR 6124/12D Data cable 100 m 9405 361 24123
PR 6124/16D Data cable 150 m 9405 361 24163
