张力仪是测量丝网受到拉力作用时其内部与固定丝网接触体之间的相互牵引力大小的仪器。张力仪有机械式和电子式两种，测量张力的单位用牛顿/厘米表示。张力也可以用相对数值来表示。厘米张力仪就是用相对数值表示张力的一种，是通过张力仪自身重量使丝网下沉的深度的数值(毫米)来计算，张力数值可从指示盘上直接得到，或者从控制盘上间接得到。张力仪有手工操作和机械操作两种。张力仪是检验丝网印版质量的重要的检测仪器。为保证得到制版要求的张力，在绷网过程中或绷网后都要使用张力仪测量。
德国施密特（Hans Schmidt & Co GmbH）专注于卷材张力检测和张力控制有超过60年历史，是世界最大张力测量仪表生产商。旗下热销产品有张力计Schmidt EDM，一款通用型张力仪，主要用在线切割加工机器上。
The Schmidt DX2-EDM Hand-Held Mechanical Tension Meters are designed to measure the tension on all current wire EDM machines with using a wire diameter of approx. 0.25 mm. These models are used throughout the world and considered the standard tension meter for the industry.
The DX2-EDM correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check.
Easy-to-read analog scale
Simple handling
Special versions for specific EDM machines are available
Calibration in cN is available
Accuracy | ± 1% Full scale or ± 1 scale graduation mark |
Rollers | Material : Hardcoated aluminum Diameter: 12 mm |
Scale Diameter | 41 mm |
Temperature Range | 8 - 45 °C |
Humidity Maximum | 85% RH |
Housing Material | Aluminum die casting |

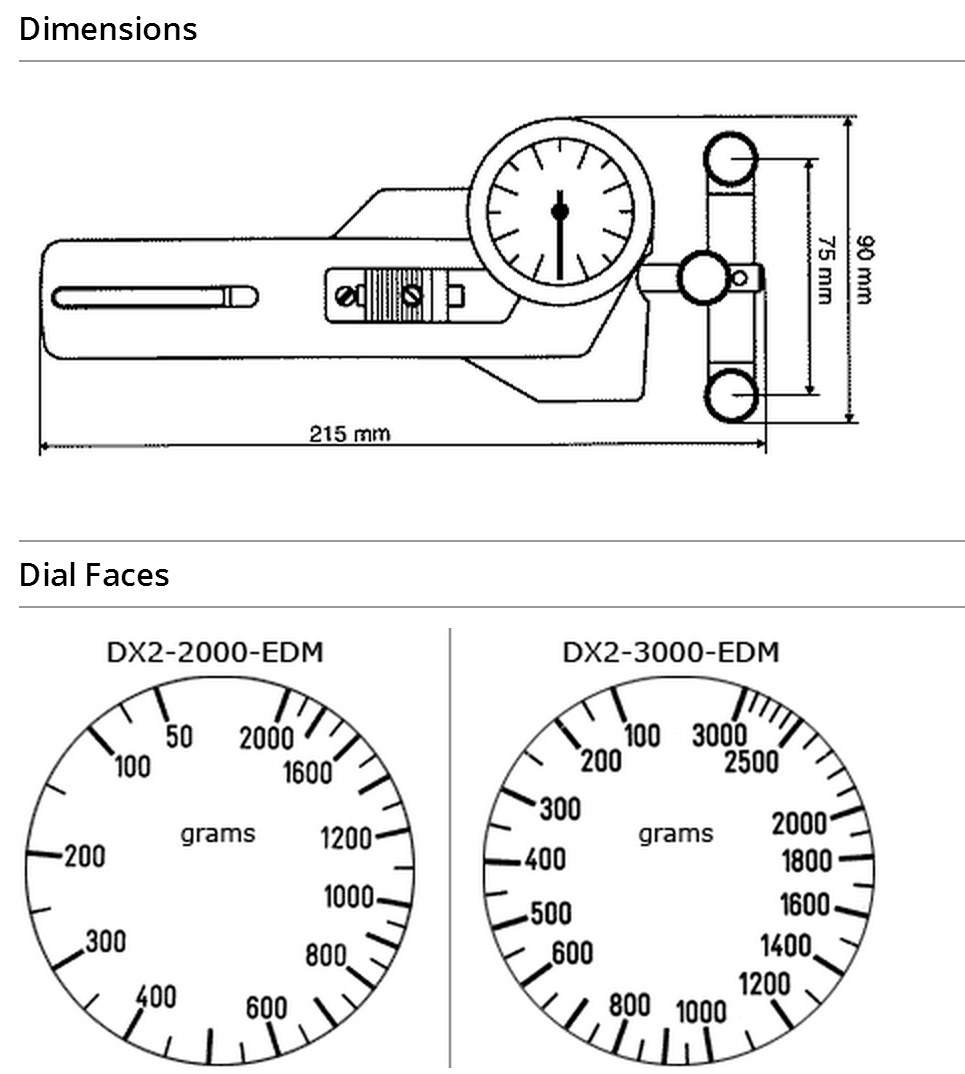

Dimensions | 215 mm x 90 mm x 44 mm (L x W x H) |
Weight | (net/gross) approx. 500 g / 1000 g |
Model | Range | Roller distance | Material |
Model | Range | Roller distance | Material |
DX2-2000-EDM | 50 - 2000 cN | 75 | No |
DX2-2000-EDM-G | 50 - 2000 g | 75 | No |
DX2-3000-EDM | 100 - 3000 cN | 75 | No |
DX2-3000-EDM-G | 100 - 3000 g | 75 | No |
DX2-4000-EDM | 200 - 4000 cN | 100 | Yes |
DX2-4000-EDM-G | 200 - 4000 g | 100 | Yes |
