张力仪是测量丝网受到拉力作用时其内部与固定丝网接触体之间的相互牵引力大小的仪器。张力仪有机械式和电子式两种，测量张力的单位用牛顿/厘米表示。张力也可以用相对数值来表示。厘米张力仪就是用相对数值表示张力的一种，是通过张力仪自身重量使丝网下沉的深度的数值(毫米)来计算，张力数值可从指示盘上直接得到，或者从控制盘上间接得到。张力仪有手工操作和机械操作两种。张力仪是检验丝网印版质量的重要的检测仪器。为保证得到制版要求的张力，在绷网过程中或绷网后都要使用张力仪测量。
德国施密特（Hans Schmidt & Co GmbH）专注于卷材张力检测和张力控制有超过60年历史，是世界最大张力测量仪表生产商。
旗下热销产品张力计Schmidt ZD2，用于易碎纱线，纤维，电线的张力测量。
Schmidt ZD2 Precision movement and light-weight, hard plastic housing makes the Type Z Series ideal for accurately checking the operating or static tensions of a wide variety of process material including delicate yarns, fibers, filaments, wires, etc.
A trigger-operated, roller-shifting mechanism and exclusive snare-guide automatically guide the moving filament into the roller V-grooves eliminating breaks and snags.
Front filament loading permits the operator to observe the filament, rollers and dial at all times.
NIST-Traceable calibration available.
Each instrument is individually calibrated with each scale hand marked to provide the highest reading accuracy.
Roller guides are rated for speeds up to 2000 m/min or, optionally, 5000 m/min.
Supplied in an attractive foam-fitted carrying case.
Accuracy | ±1% of Full Scale or |
Outer roller distance:c: | 33 mm (1.5") |
Diameter of Dial | 54 mm (2.13") |
Dimensions | 150 x 120 x 30 mm |
Weight | 230 g (8.2 oz.) |
Roller Material | Standard - Hard coated aluminum |
Maximum Linear Speed | Standard - 2000 meters/min |
Other Options | Calibration for horizontal material path (rollers pointing down)(D) |
Optional Accessories | ZF2-ZD2-CALKIT - Calibration Cover for ZF2/ZD3 with 2 wrenches |
订货型号

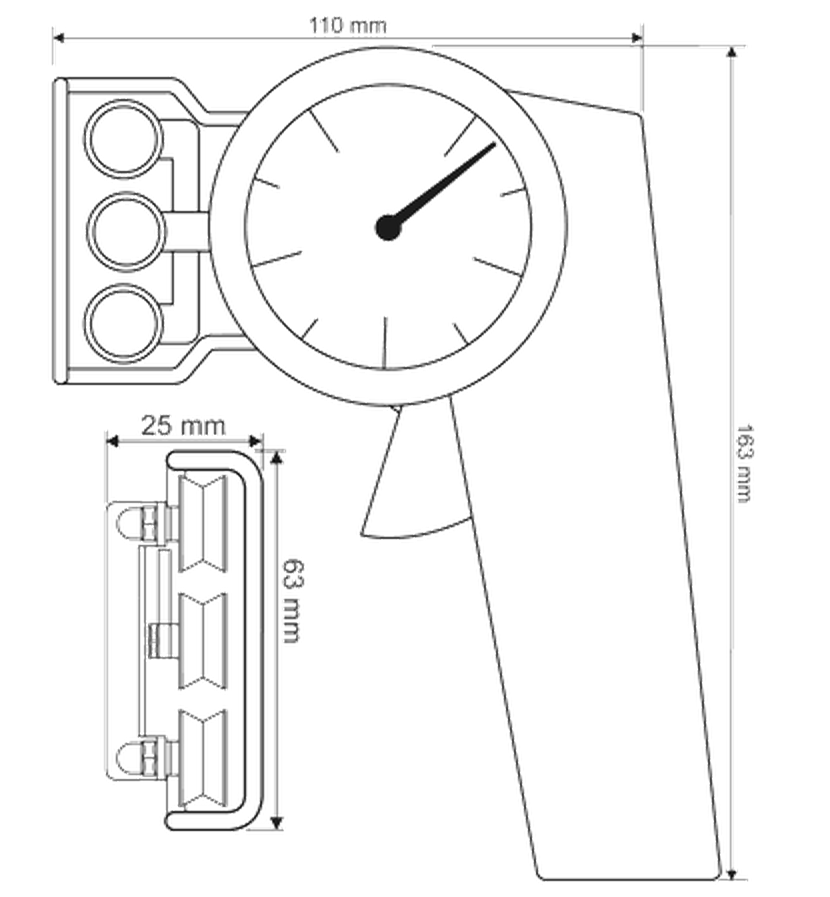

Model | Range | Measuring Head Width* | Calibration Material** |
ZD2-30 | 3-30 g | 63 mm | PA: 0.12 mm ⌀ |
ZD2-50 | 5-50 g | 63 mm | PA: 0.12 mm ⌀ |
ZD2-100 | 10-100 g | 63 mm | PA: 0.12 mm ⌀ |
ZD2-150 | 20-150 g | 63 mm | PA: 0.12 mm ⌀ |
ZD2-200 | 20-200 g | 63 mm | PA: 0.12 mm ⌀ |
ZD2-300 | 20-300 g | 63 mm | PA: 0.20 mm ⌀ |
