DT-311J频闪仪


Where powerful illumination and rugged speed measuring accuracy is required for the textile industry, the shimpo DT-311J will perform where other stroboscopes will not. The DT-311J is used to set injection timing, injection pressure, timing of shedding and weft running time of weaving machinery. Units combine rugged NEMA 4X (IP65) housing with high performance accuracy, special phase shifting, with shock absorbing components and top mounted handle, allows the equipment operator maximum flexibility when setting the timing of weaving machinery.


  • Internal signal “MODE” (flash), allow manual control and display of flash rate (rpm), deg (flash delay angle in degrees)

  • External triggering control, automatically synchronizes to an input signal

  • Phase “SHIFT” switch, single touch – changes flash timing, 0 – 359 degrees

  • “ZERO” setting control, zeroing at any angle is easy-single touch

  • Long life flashtubes, flash rates of 200-1500 fpm, the DT-311J flash tubes are designed for extra long life

  • Angle division “DIV”, permits special flash interval ratio settings: 1/1, 1/2, 1/3, 1/4, and 2/4 flashes per rotation


Model

DT- 311J

Phase Shift

0° – 359° / 1° increments

Flash Rate/Phase Angle Setter

Rotary dial

Display

4 digit 0.39 in (10 mm) high red LED

Divide Ratio

1/1, ½, 1/3, ¼, 2/4 with shift

Input Signal

High level: 5-24 V pulse; Low Level: 0-1   V pulse. 2 msec minimum. Impedance less than 10k Ω

Input Impedance

47k

Display Mode

Phase shift (degree), Tachometer

Accuracy

±1 digit

Internal Signal Range

200-1500 FPM

Flash Range

200-1500 FPM

FlashTube

Xenon lamp Max: 10w at 1,500 rpm. Life:   1,200 hours at 1,500 rpm

Flash Duration

10 to 40 μs automatically adjusts with   flash rate

Lux Rating

8” (20 cm) Distance = 4500 lx @ 1500 fpm,   3375 lx @ 6000 fpm with 4.5″ (110 mm) irradiation diameter.
  20” (50 cm) Distance = 1300 lx @ 1500 fpm, 930 lx @ 6000 fpm with 10″ (250   mm) irradiation diameter.

Power Requirement

115VAC±5% 50/60Hz

Power Consumption

20VA max

Operating Temperature

32° to 104°F (0 to 40°C)

Dimensions

N/A

Product Weight

4.2 lbs (1.9 kg)

Package Weight

6.2 lbs (2.81 kg)

Warranty

2-Year

Included Accessories

19.68’ (6m) input/power cable with   connector, rubber strobe guard w/ handle


订货型号

DT-311J

Harsh Environment NEMA 4X (IP65)   Stroboscope with Included power 19.68’ (6m) cable, rubber strobe guard with   handle

DT-311J-230V

Same as 311J but with 230 VAC power

NIST-STROBE

NIST traceable certificate with data



配件

FLASHTUBE311-J

Replacement flash tube for DT-311J


相关型号

DT-311A

DT-315A

DT-361

DT-365

DT-365E

DT-315AEB

DT-315P

DT-326B

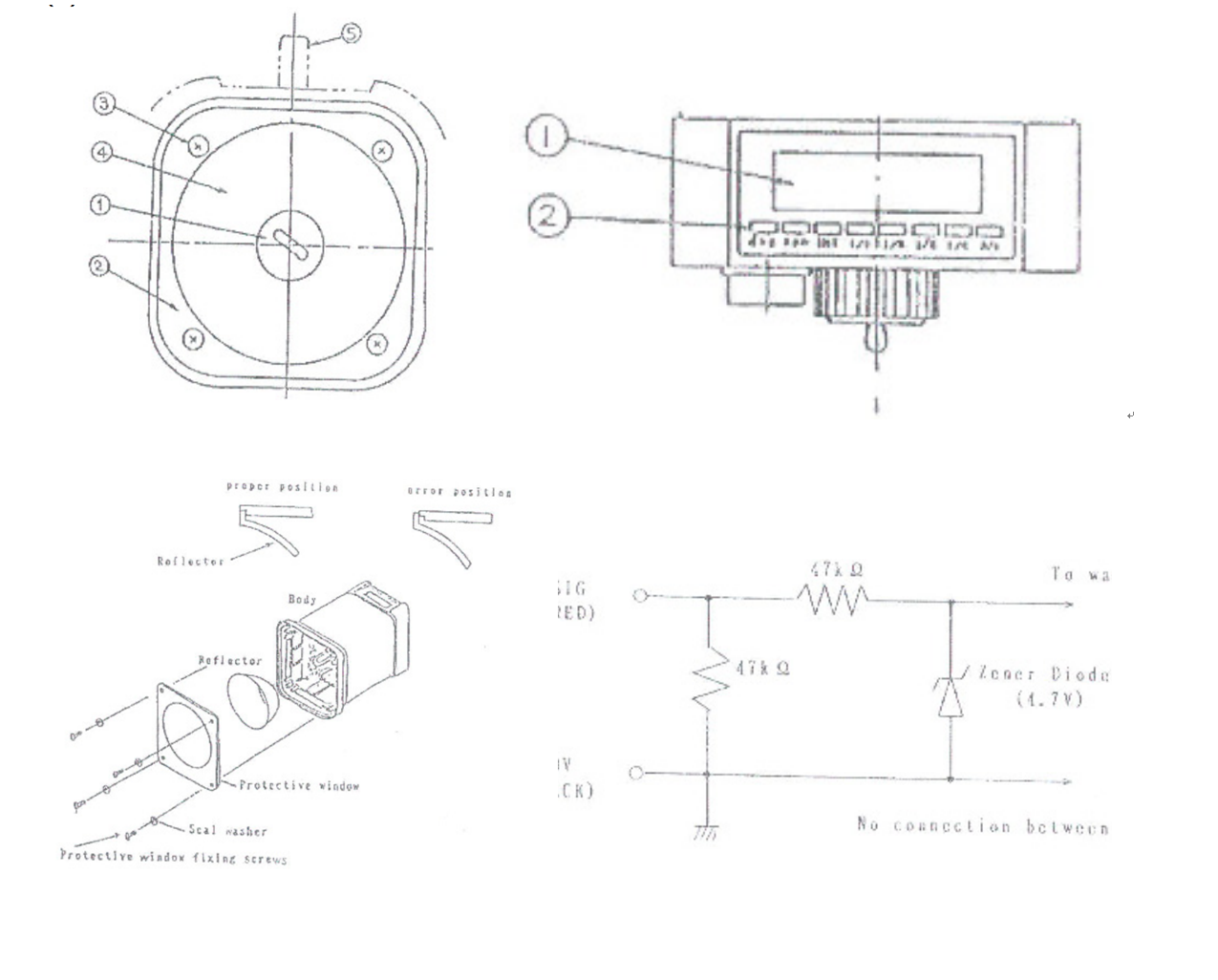

DT-311J 01.png
