High-Intensity, Battery Powered LED Stroboscopes. The DT-365 High-Intensity, Battery Powered LED Stroboscopes are velocity analyzing and measuring devices that are ideal for machinery process inspection. The DT-365 Stroboscopes are capable of flashing their LED lights in a synchronous frequency to the operating machinery, creating the illusion of viewing slowed or frozen images. Utilizing this phenomenon of slowing or stopping the motion with the adjusted flash rate of its LED lights, machine parts and processes may be inspected for defects, aiding in preventative maintenance programs. This LED technology extends operation due to the low energy requirement of the light diodes compared with xenon lit stroboscopes. Proper operation is assured as concern of light failure during usage, common with xenon bulbs, is eliminated. The light output (Lux) of the LED’s is far brighter than xenon powered stroboscopes with the shimpo DT-365 outshining all comparable stroboscopes on the market from its array of 18 LED’s.
Extraordinary durability with extruded aluminum, NEMA 4X (IP65) construction

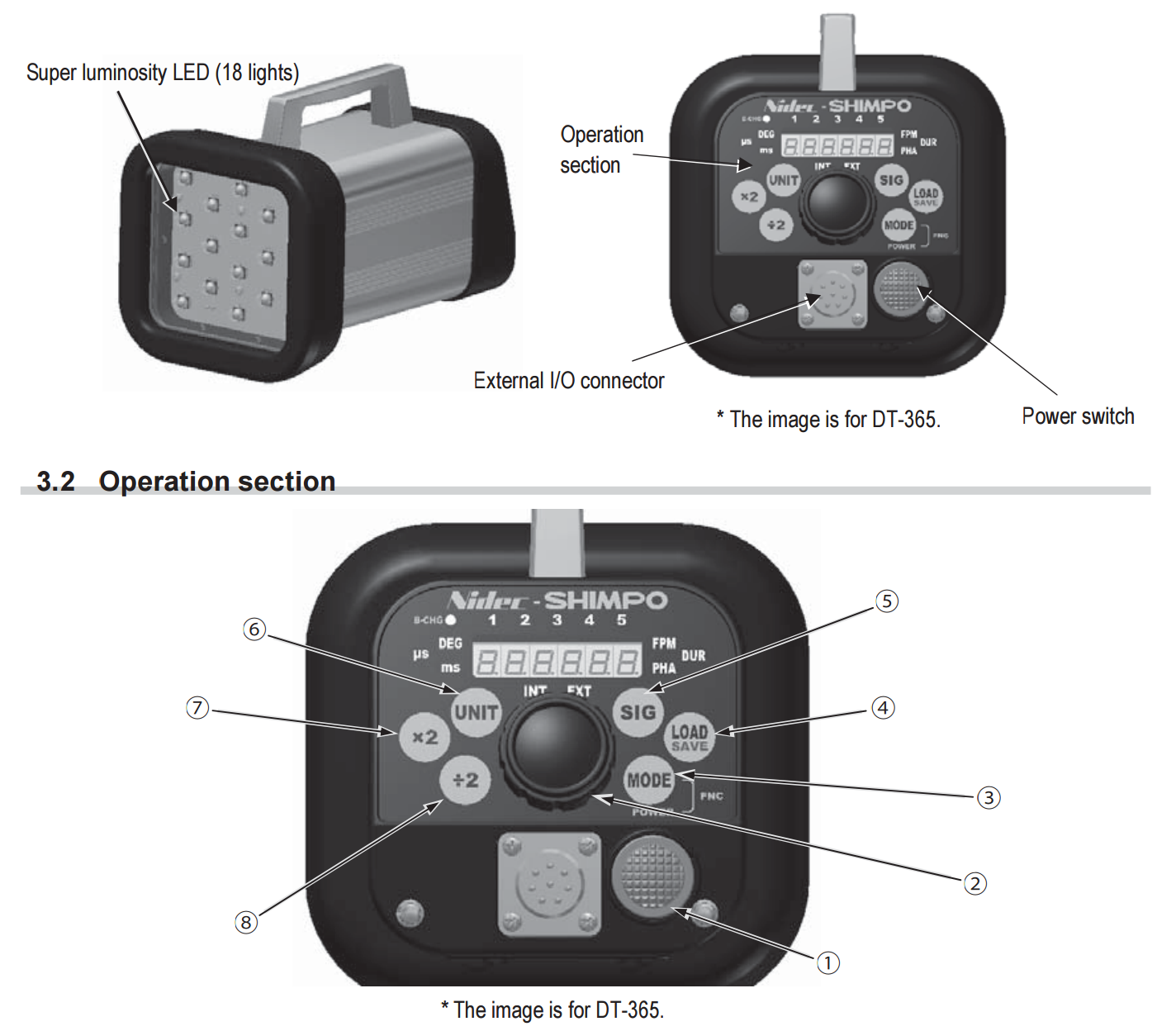

Bright LED display and simple controls aid in user operation
Long Lasting, quick-charge NiMH rechargeable battery provides exceptional usage reliability
Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle
Flash controller dial permits accurate adjustments to the flash rate
LED technology greatly extends operation life and eliminates need to replace burned out bulbs
Capable of being synchronized with input signal from sensor or controller
Model | DT-365 |
Range FPM (RPM) | 60-120,000; From Input Signal 40-35,000 |
Accuracy | ±0.02% of reading |
Lux Rating (Approx.) | 6000 FPM & 3.6° (100 μs): Distance 8˝ (20 cm) 18,400 lx with 10˝ (250 mm) irradiation dia., Distance 20˝ (50 cm) 6200 lx with 13.5˝ (350 mm) irradiation dia. |
1500 FPM & 3.6° (400 μs): Distance 8˝ (20 cm) 15,000 lx with 10˝ (250 mm) irradiation dia., Distance 20˝ (50 cm) 6000 lx with 13.5˝ (350 mm) irradiation dia. | |
Lamp Lifetime | Typ. 50,000 hours. Varies depending on usage. |
Display | 6 digit Red LED |
Resolution | Internal Mode 1 FPM. External Mode 0.1 FPM |
Flash Duration | 0.1 to 3.6° (0.14 μsec to 400 μsec) |
Phase Shift | 0 to 999 msec; 0 to 359° |
Power Requirement | 100 to 230 VAC to included AC power adapter |
Battery | NiMH battery requires approximate 2.5 hour recharge time |
Battery Life | Approx. 2 hrs. with flash duration set to 3.6° & 5 hrs. with duration set to 1.0° |
Synchronization Input Signal | H level: 2.5 – 12V; L level: 0 – 0.4V |
Input Signal Range FPM (RPM) | 40 – 35,000 |
Input Signal Flash Delay FPM (RPM) | 60-10,000 |
Input Signal | 12V pulse input |
Power Supply Output | DC12V 40mA for sensor input |
Temperature Limits | 32 to 95°F (0 to 35°C) |
Humidity Limits | 35 to 85% RH |
Protection Class | NEMA 4X (IP65) |
Product Weight | 4.6 lbs (2.1 kg) |
Package Weight | 6 lbs (2.72 kg) |
Approvals | RoHs |
Warranty | 2-Year |
Included Accessories | AC power adapter, Input signal connector, flash-light style attachable handle |
订货型号
DT-365 | High Intensity Portable LED Stroboscope with Rechargeable Battery |
SAS-360 | Flexible swing arm for DT-361, DT-365, DT-365E LED Stroboscopes |
SAS-360BASE | SAS-DT360 Mounting base |
CABLE-361-10FT | Daisy chain syncing cable for DT-361 and DT-365 stroboscopes with Connectors, 10 ft length |
NIST-STROBE-IN | NIST traceable certificate of calibration for stroboscopes |
