FGV-XY推拉力计


完全替代FGP系列

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications.



The Series Shimpo FGV-XY DART 2.0 Force Gauges combine a rugged, ergonomic and compact design to provide a complete force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.


  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results

  • High accuracy +/-0.2% F.S., ideal for strict tolerances

  • Measure and record compression and tension tests- permits true “push-pull” testing

  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand

  • Maximum data collection flexibility with 3 outputs: USB, RS-232 & Analog Output

  • 1 million operation load cell with superior overload protection provides a long-life, damage free product

  • Rugged, ergonomic die cast aluminum construction allows usage on production floor

  • On board statistics provides immediate results and analysis of test data

  • Variable display response rate aids viewing readings

  • Expanded memory for reviewing data points and transferring to PC/Laptop

  • Built-in Hi-Lo Comparator function provides user with easy ‘Go-No Go’ Testing

  • Quick retrieval of peak measurement with a single push button

  • Flexible user preference with one button selection of up to 4 engineering units

  • Dual power capable with rechargeable battery or AC line voltage

  • Field Calibration through keypad eliminates down time

  • CE Mark


Models

FGV-0.5XY

FGV-1XY

FGV-2XY

FGV-5XY

FGV-10XY

Capacity

8 oz
  0.5 lb
  200.0 g
  2.000 N

16 oz
  1 lb
  500.0 g
  5.000 N

32 oz
  2 lb
  1,000 g
  10.00 N

5 lb
  2.000 Kg
  20.00 N

10 lb
  5.000 Kg
  50.00 N

Resolution

0.01 oz
  0.001 lb
  0.1 g
  0.001 N

0.01 oz
  0.001 lb
  0.1 g
  0.001 N

0.01 oz
  0.001 lb
  1 g
  0.01 N

0.001 lb
  0.001 Kg
  0.01 N

0.01 lb
  0.001 Kg
  0.01 N

Models

FGV-20XY

FGV-50XY

FGV-100XY

FGV-200XY


Capacity

20 lb
  10.00 Kg
  100.0 N

50 lb
  20.00 Kg
  200.0 N

100 lb
  50.00 Kg
  500.0 N

200 lb
  100 Kg
  1000N


Resolution

0.01 lb
  0.01 Kg
  0.1 N

0.01 lb
  0.01 Kg
  0.1 N

0.1 lb
  0.01 Kg
  0.1 N

0.1 lb
  0.1 Kg
  1N


Accuracy

±0.2% F.S.

Display

4-Digit LCD, 0.5” (12 mm) high, Units /   0.29” (7 mm). Reversible by the push of a button. Minus sign for tension

Display Update

0.05, 0.1, 0.2, 0.3, 0.5, 1 sec

Sampling Rate

1000 Hz

Overload

200% of F.S. (200 lb.: 150% F.S.)

Power

Rechargeable Ni-MH battery or universal   AC adapter/charger (100-240VAC, 50-60Hz)

Output

Analog: ±1 VDC (through a 12 bit D/A   converter)

RS232C: Baud rate (19200, 9600, 4800,   2400 bps selectable), commands control

USB: Allows communication between FGV-XY   and Windows® PC Software with TORIEMON-USB via USB cable (included)

Overload Comparator: Open-collector   output (Max DC30V/5mA)

Auto Power Shut-Off

Yes (not active if adapter/charge is in   use)

Battery Charge

12 hours (when fully charged)

Recharge Time

Approximately 18 hours when fully   discharged

Temperature Range

32° – 104° F (0° – 40° C)

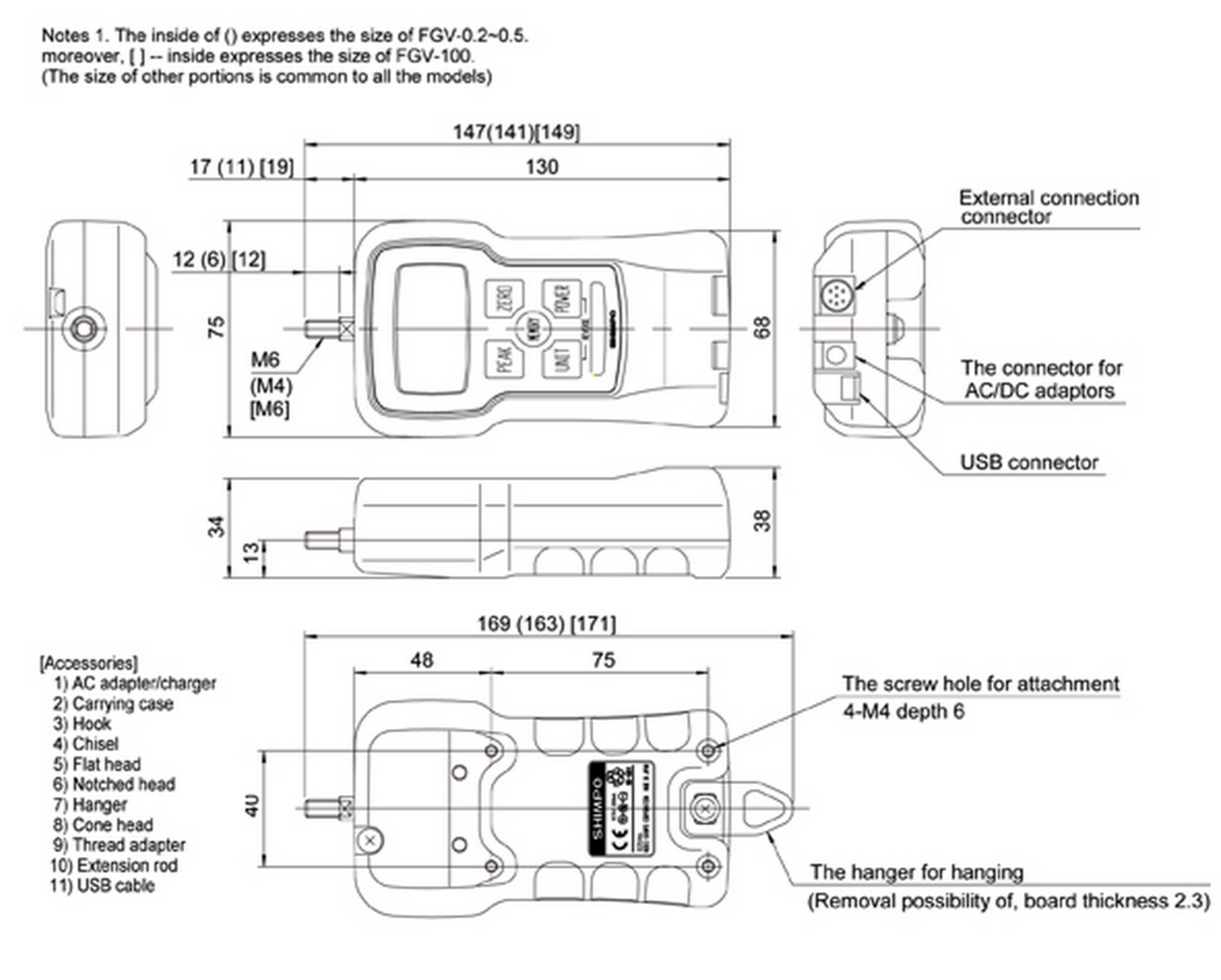

Dimensions

5.8” x 3” x 1.5” (147 x 75 x 38 mm)

Product Weight

Approx. 1 lb (450 g); FGV-200XY Approx.   1.1 lb (500 g)

Package Weight

Approx. 2.4 lb ( 1.09 kg) for 0.5 lb and   1 lb ranges; 2.6 lb (1.12 kg) for 2 to 100 lb ranges; 2.75 lb (1.25 kg) for   200 lb range.

Certification

CE

Warranty

2-Year

Included Accessories

AC adapter/charger, carrying case, hook,   chisel, flat head, notched head, hanger, cone head, thread Adapter, extension   rod, USB cable.


订货型号

FGV-0.5XY

0.5 lb capacity digital force gauge

FGV-1XY

1 lb capacity digital force gauge

FGV-2XY

2 lb capacity digital force gauge

FGV-5XY

5 lb capacity digital force gauge

FGV-10XY

10 lb capacity digital force gauge

FGV-20XY

20 lb capacity digital force gauge

FGV-50XY

50 lb capacity digital force gauge

FGV-100XY

100 lb capacity digital force gauge

FGV-200XY

200 lb capacity digital force gauge

NIST-FG

NIST traceable certificate of calibration   for ranges from 0.5 to 100 lbs

NIST-FG-HC

NIST traceable certificate of calibration   for ranges 200 lbs to 1000 lbs

FGV-PT100 or FGV-PT200

100 lb or 200 lb capacity FGV-XY in   ergonomic testing kit. Kit includes all of the standard FGV-XY accessories   but comes with larger, heavy duty case and adds padded ERGO accessories,   handle, and NIST traceable certificate



配件

FG-M4ADP

Standard adapter set with M4 threads for   ranges 0.5 lb and 1 lb. Includes: chisel, cone, flat head, notched head,   hook, extension rod

FG-M4CL

Chisel adapter with M4 thread for ranges   0.5 lb and 1 lb.

FG-M4CN

Cone head adapter with M4 thread for   ranges 0.5 lb and 1 lb.

FG-M4FL

Flat head adapter with M4 thread for   ranges 0.5 lb and 1 lb.

FG-M4GV

Notched head adapter with M4 thread for   ranges 0.5 lb and 1 lb.

FG-M4HK

Hook adapter with M4 thread for ranges   0.5 lb and 1 lb.

FG-M4RD

Extension rod adapter with M4 thread for   ranges 0.5 lb and 1 lb.

FG-M6ADP

Standard adapter set with M6 threads for ranges   2 lb to 200 lb. Includes: chisel, cone, flat head, notched head, hook,   extension rod

FG-M6CL

Chisel adapter with M6 thread for ranges   2 lb to 200 lb.

FG-M6CN

Cone head adapter with M6 thread for   ranges 2 lb to 200 lb.

FG-M6FL

Flat head adapter with M6 thread for   ranges 2 lb to 200 lb.

FG-M6GV

Notched head adapter with M6 thread for   ranges 2 lb to 200 lb.

FG-M6HK

Hook adapter with M6 thread for ranges 2   lb to 200 lb.

FG-M6RD

Extension rod adapter with M6 thread for   ranges 2 lb to 200 lb.

FG-09V120UC

Universal charger adapter for 120/240V AC

ERGO-KIT

Padded accessory kit for ergonomic   testing

FG-HANDLE

Handle adapter for larger loads

FGV-ANALOG

Connection cable for FGV’s +/-1 VDC   analog output


相关型号

FGE-XY

FGE-HXY

FG-3000

FG-7000

FG-7000L

FGV-HXY


FGV-XY 01.png
