拉压力传感器又叫电阻应变式传感器，隶属于称重传感器系列，是一种将物理信号转变为可测量的电信号输出的装置。广泛运用在工业称重系统、平台秤、电子秤、吊钩秤、配料秤等测力场合。
美国Transducer Techniques CLC系列压式力传感器是以弹性体为中介，通过力作用在帖传感器两边的电阻应片使它的阻值发生变化，再经过相应的电路转换为电的信号，从而实现后面的控制。它的优点是精度高，测量范围广,寿命长,结构简单，频响特性好。
CAPACITY RANGES:
50,000, 100,000, 200,000, 300,000, 400,000 LBS.
Our CLC Series is our high capacity compression only load cell, featuring low profile compact size for a wide range of portable and dedicated applications. The loading diameter (D1) is slightly convex for accurate load distribution. Low deflection through design results in ultra fast frequency response. All Transducer CLC ranges are made from 17-4ph heat treated stainless steel and incorporate a stainless steel molded connector system designed to resist washdown and splash. The mating connector, sold seperately, is available in three different cable lengths.
详情请联系我们
Rated Output (R.O.): 2 mV/V nominal
Nonlinearity: 0.25% of R.O.
Hysteresis: 0.25% of R.O.
Nonrepeatability: 0.1% of R.O.
Zero Balance: 1.0% of R.O.
Compensated Temp. Range: 60° to 160°F
Safe Temp. Range: -65° to 200°F
Temp. Effect on Output: 0.005% of Load/°F
Temp. Effect on Zero: 0.01% of R.O./°F
Terminal Resistance: 350 ohms nominal
Excitation Voltage: 10 VDC
Safe Overload: 150% of R.O.
配件
CAL-TEDS Plug & Play Option with Connector
AMM-66SS Mating Assembly 6 ft Cable
AMM-612SS Mating Assembly 12 ft Cable
AMM-620SS Mating Assembly 20 ft Cable
AMM-650SS Mating Assembly 50 ft Cable

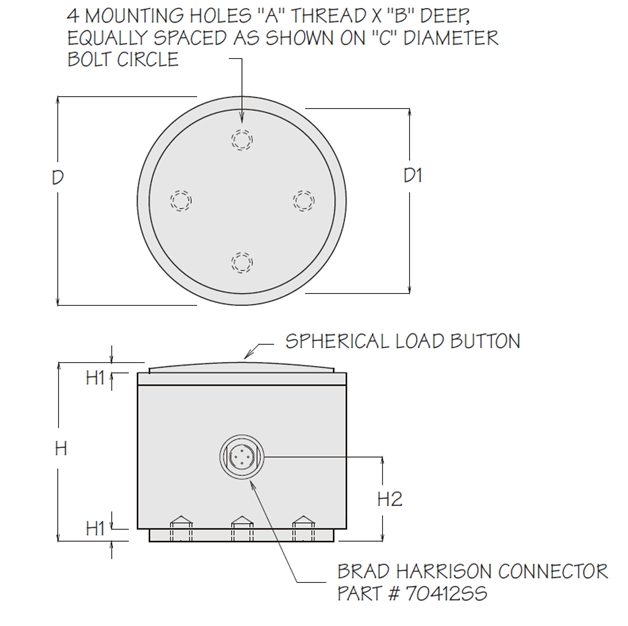

订货型号
CLC-50K 50,000 2.750 2.060 2.250 .250 1.000 20.0 1/4-28 .250 1.500 32,000 .001 5
CLC-100K 100,000 2.750 2.060 2.250 .250 1.000 20.0 1/4-28 .250 1.500 32,000 .001 6
CLC-200K 200,000 3.500 2.810 4.000 .250 1.875 24.0 3/8-24 .375 2.000 32,000 .001 8
CLC-300K 300,000 4.250 3.560 4.500 .250 2.125 24.0 3/8-24 .375 2.500 32,000 .001 9
CLC-400K 400,000 4.500 3.810 5.000 .250 2.375 24.0 3/8-24 .375 2.500 32,000 .001 10
