拉压力传感器又叫电阻应变式传感器，隶属于称重传感器系列，是一种将物理信号转变为可测量的电信号输出的装置。广泛运用在工业称重系统、平台秤、电子秤、吊钩秤、配料秤等测力场合。
美国Transducer Techniques SSM系列压式力传感器是以弹性体为中介，通过力作用在帖传感器两边的电阻应片使它的阻值发生变化，再经过相应的电路转换为电的信号，从而实现后面的控制。它的优点是精度高，测量范围广,寿命长,结构简单，频响特性好。
SSM SERIES CAPACITY RANGES: 50, 100, 200, 500, 1,000, 2,000, 2,500, 5,000, 8,000, 10,000 LBS.

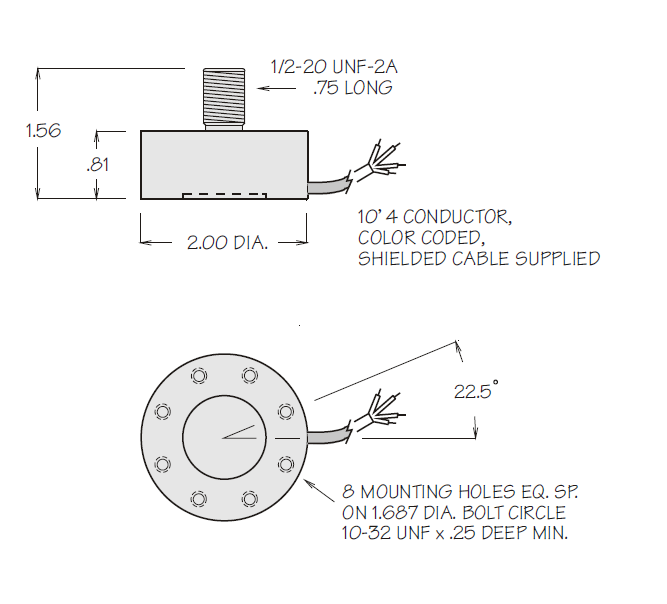

The SSM Series Surface Stud Mount load cells were designed to be surface mounted with the load applied through the mounting stud for tension or compression applications. The matching surface must be flat and at least 2 inches in diameter. Eight threaded mounting holes are provided on the bottom surface for fastening down from beneath. These sensors are manufactured from heat treated 17-4ph stainless steel, and the sensing element incorporates bonded foil strain gages of the highest quality. They are sealed for protection against most industrial environments.
详情请联系我们
Rated Output (R.O.): 2 mV/V nominal
Nonlinearity: 0.15% of R.O.
Hysteresis: 0.15% of R.O.
Nonrepeatability: 0.05% of R.O.
Zero Balance: 1.0% of R.O.
Compensated Temp. Range: 60° to 160°F
Safe Temp. Range: -65° to 200°F
Temp. Effect on Output: 0.005% of Load/°F
Temp. Effect on Zero: 0.005% of R.O./°F
Terminal Resistance: 350 ohms nominal
Excitation Voltage: 10 VDC
Safe Overload: 150% of R.O.
Deflection Inches: 0.002 @ R.O.
订货型号
SSM-50 50 lb Compression Included, Tension Optional
SSM-100 100 lb Compression Included, Tension Optional
SSM-200 200 lb Compression Included, Tension Optional
SSM-500 500 lb Compression Included, Tension Optional
SSM-1K 1,000 lb Compression Included, Tension Optional
SSM-2K 2,000 lb Compression Included, Tension Optional
SSM-2.5K 2,500 lb Compression Included, Tension Optional
SSM-5K 5,000 lb Compression Included, Tension Optional
SSM-8K 8,000 lb Compression Included, Tension Optional
SSM-10K 10,000 lb Compression Included, Tension Optional
配件
CAL-TEDS N/A Plug & Play Option with Connector
TC-CAL N/A Tension Calibration Option
