Our Transducer Techniques TLL Series load cells are offered as an economical method for accurately measuring in line tension forces. Best results are obtained when loaded through spherical rod end bearings or similar “universal” mechanical linkage.
TLL是一款经济型称重传感器，能精确测量在线张力。安装在球形杆端轴承或者类似的机械联动装置上可以取得良好测量效果。
Ranges 500 through 3,000 lbs. are anodized aluminum, and ranges 5,000 through 50,000 lbs. are manufactured from heat treated 17-4ph stainless steel. The TLL Series sensing areas and cable exit are moisture protected for semi-controlled environments.
500lbs到3000lbs为阳极电镀铝材质，5000lbs到50000lbs为热处理17-4ph不锈钢材质。Transducer TLL的感应元件和电缆线出口端都是具有防水性。
详情请联系我们
额定输出 | 2 mV/V nominal |
非线性 | 0.25% of R.O. |
磁滞 | 0.25% of R.O. |
不可重复性 | 0.1% of R.O. |
零点平衡 | 1.0% of R.O. |
补偿温度范围 | 60° to 160°F (60℃-71℃) |
安全温度范围 | -65° to 200°F (-54℃- 93℃) |
灵敏度温漂 | 0.005% of Load/°F |
零点温漂 | 0.005% of R.O./°F |
终端电阻 | 350 ohms nominal |
激励电压 | 10 VDC |
安全载荷 | 150% of R.O. |
偏斜（英寸） | |
TLL-500到TLL-3K | 0.003 |
TLL-5K到TLL-50K | 0.005 |

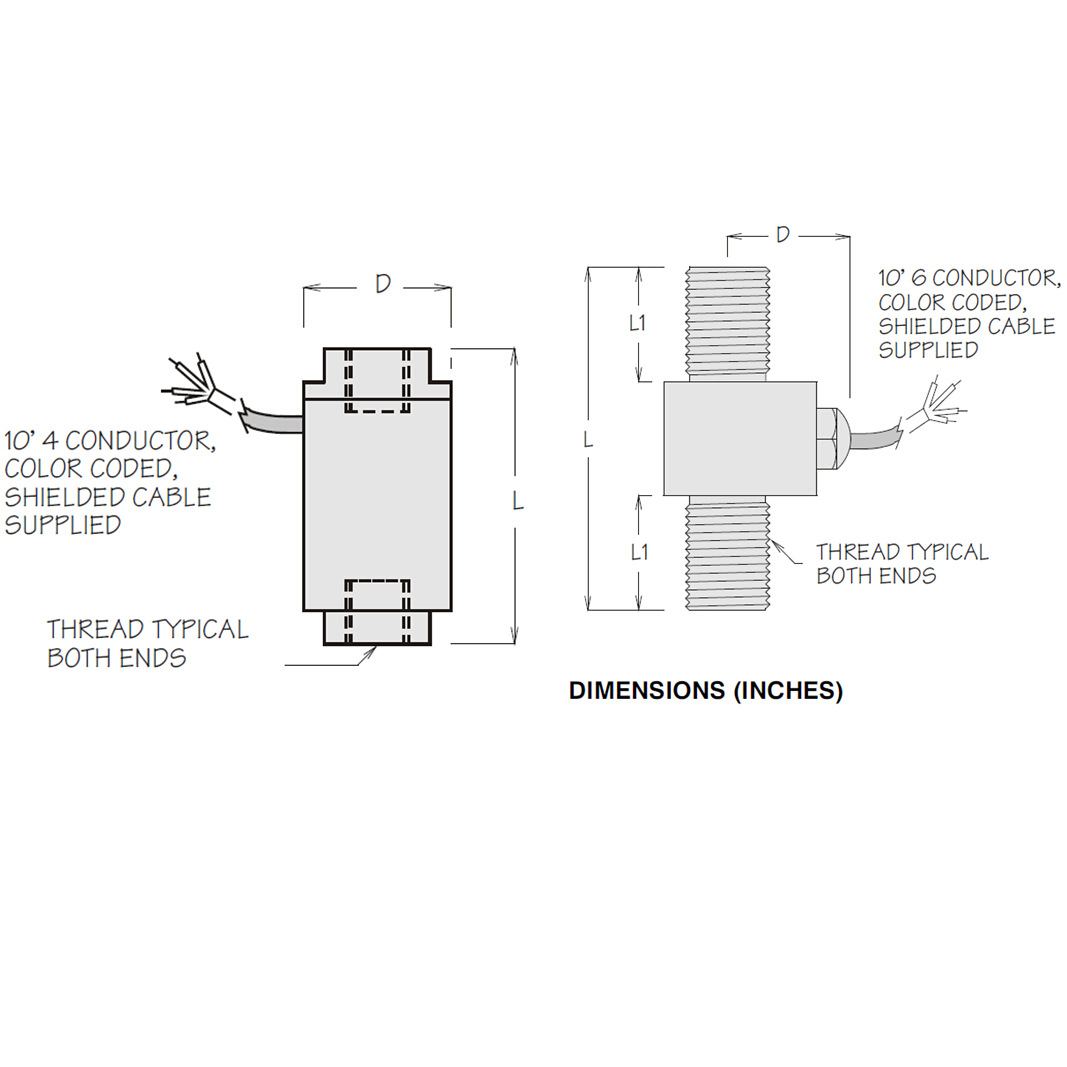

订货型号
型号 | 量程 （磅） | 尺寸（英尺） | 重量 (盎司) | |||
直径 | L | 螺纹 | 螺纹深度 | |||
TLL-500 | 500 | 0.750 | 1.500 | 1/4-28 UNF | 0.250 | 0.5 |
TLL-1K | 1000 | 0.875 | 1.750 | 3/8-24 UNF | 0.375 | 0.6 |
TLL-2K | 2000 | 0.875 | 1.750 | 3/8-24 UNF | 0.375 | 0.7 |
TLL-3K | 3000 | 1.25 | 2.000 | 1/2-20 UNF | 0.500 | 1.0 |
型号 | 量程 （磅） | 尺寸（英尺） | 重量 (盎司) | |||
L | L1 | D | 螺纹 | |||
TLL-5K | 5000 | 3.50 | 1.125 | 1.500 | 3/4-16 UNF | 8 |
TLL-10K | 10000 | 3.50 | 1.125 | 1.500 | 3/4-16 UNF | 8 |
TLL-20K | 20000 | 3.75 | 1.250 | 1.600 | 1-14 UNS | 14 |
TLL-30K | 30000 | 4.25 | 1.500 | 1.700 | 1 1/4-12 UNF | 24 |
TLL-50K | 50000 | 5.00 | 1.875 | 1.825 | 1 1/4-12 UNF | 40 |
配件
CAL-TEDS Plug & Play Option with Connector
