频闪仪是指控制光源发光，以特定频率快速闪动的光学测量仪器。美国Checkline DT-315A频闪仪本身可以发出短暂又频密的闪光,当调节频闪灯的闪动频率,使其与被测物的转动或运动速度接近或同步时,被测物虽然高速运动着,但看上去却是缓慢运动或相对静止,这种视觉暂留现象使人目测就能轻易观测到高速运动物体的表面质量与运行状况 ,而频闪仪的闪光速度即为被检测物体(例如:马达 )转速和运动频率 (印刷袋 ) ,亦可以利用频闪仪分析物体振动情况、 高速移动物体的动作以及高速摄影等。利用频闪仪观测检验技术在欧美已广泛使用 ,随着我国经济的高速发展,越来越多的行业开始使用频闪仪来帮助解决产品质量检验问题。
Check-Line DT-315A 频闪仪也叫频闪静像仪或转速计 ,是能够使作振动、 高速旋转或周期运动构件变成“ 静止不动 ” 构件的一种光学测量装置。
Flash Range: 40-35,000 RPM/FPM

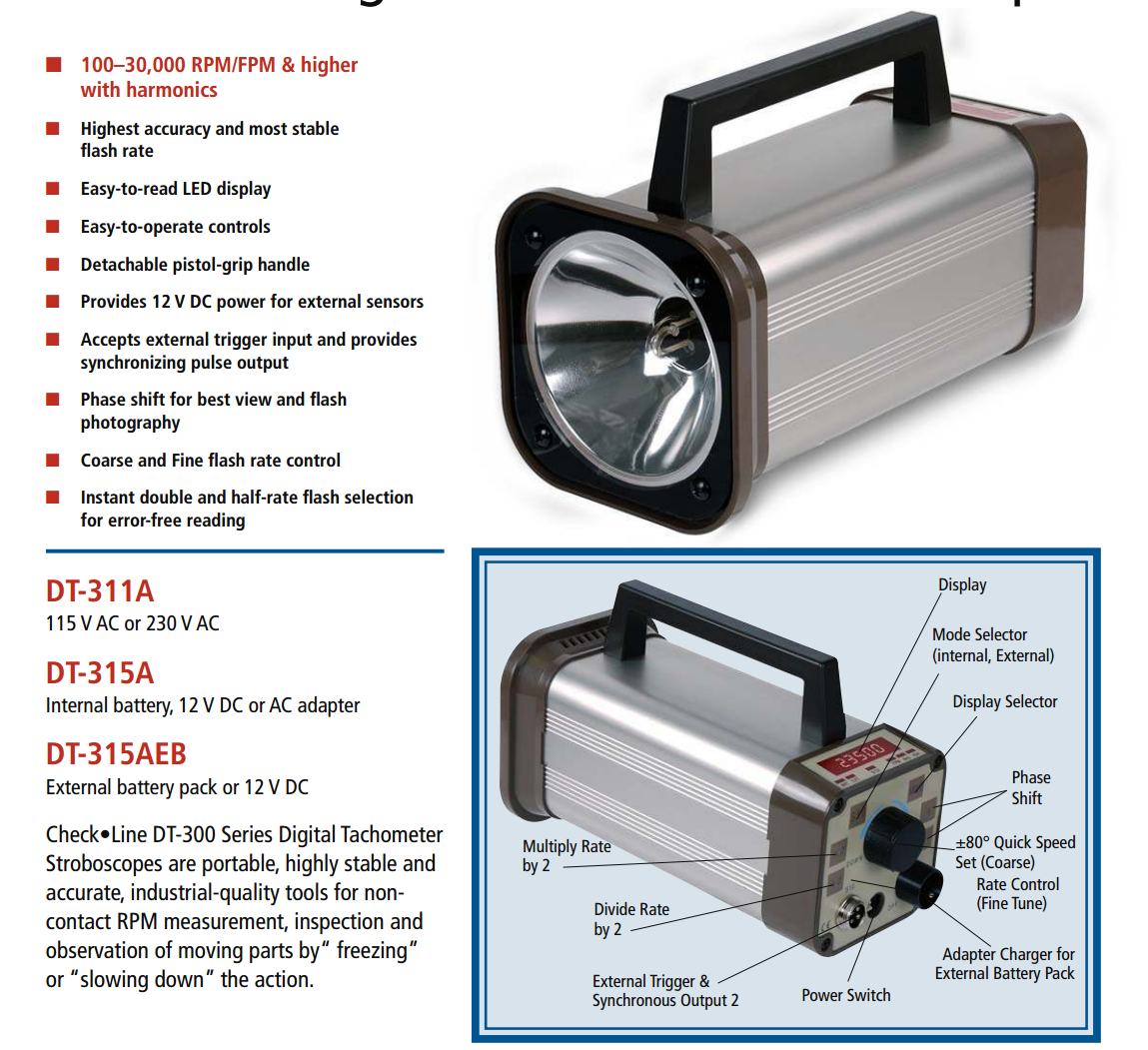

The DT-315A is a rugged, battery powered stroboscope designed for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the motion. The DT-315A provides power flexibility as in addition to its internal rechargeable battery it can operate from AC power.
Highest accuracy and most stable flash rate
Accepts external trigger input and provides synchronizing pulse output
Easy-to-read LED display
Phase shift for best view and flash photography
Easy-to-operate controls
Flash rate control
Detachable pistol-grip handle
Instant double and half-rate flash selection for error-free reading
Provides 12 V DC power for external sensors
Flash Range | 40-35,000 FPM |
Accuracy | Internal Mode: ±0.01% of reading |
Resolution | 0.1 FPM: 40.0 - 4,999.9 FPM |
Drift | ±0.01% per °C |
Update Time | Internal Mode: 0.2 seconds |
Input Signal | LO level: 0-0.4 VDC |
Output Signal | Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance |
Display & Rate | Divide or multiply by 2, selectable |
Operating Temperature | 32-104 °F (0-40 °C) |
Display | 5 digits, 10 mm high, red LED |
Flashtube | Xenon, 10 W maximum |
Flash Duration | 10-30 µs |
Sensor Power Supply | 12 VDC ± 0.5V (50ma) |
Power Requirements | Internal Rechargeable battery |
Weight | 4.4 lbs. (2 kg) |
Dimensions | 4.7 x 5.6 x 9.7" (120 x 141 x 248 mm) |
Warranty | 2 Years |
EXTERNAL MODE ONLY | |
Phase Shift | 0 - 359° with 1° resolution or |
Input Impedance | 10,000 ohms |
订货清单
Hard plastic carrying case with custom molded insert allows for safe storage and easy transportation. Provides storage space for the DT-315A, AC adapter, and accessories.
配件
NISTCAL NIST Traceable Calibration Certificate
311FH Spare flash tube for DT-300 Series Strobes
DT300CC Carrying Case for DT-300 Series Strobes
SG-300 Protective Rubber Caps for DT-300 Series Strobes
BP-315A Spare / Replacement battery pack for DT-315A
SAS-DT300 Articulating Swing Arm for Stroboscopes
DT-315A-BC Replacement / Spare Charger DT-315A 110V AC
DT300-CON Input / Output Connector for DT-311A, DT-315A Stroboscopes
311RT Spare Flash Tube Removal Too
订货型号
DT-315A DT-315A Battery Powered Digital Stroboscope, 115V Adapter
DT-315A-2 DT-315A-2 Battery Powered Digital Stroboscope, 230V Adapter
